05HB-06MAORB 90 ELBOW FORGED

Description & Features

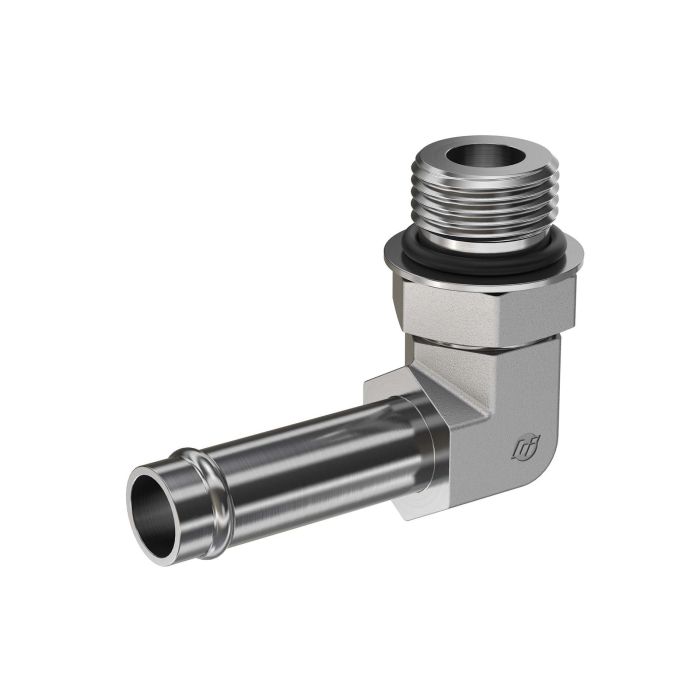

Forged from steel, the 05HB-06MAORB 90 Elbow Forged is a 90-degree elbow fitting designed for hydraulic hose assemblies requiring a compact directional change. One end features a hose barb connection sized for 5/16" tube OD, while the other end terminates in a 9/16-18 Male SAE Adjustable O-Ring Boss (ORB) thread conforming to SAE J514. The adjustable ORB end incorporates an NBR o-ring seal, providing a reliable, leak-resistant connection across a range of hydraulic fluid types.

Steel forging construction gives this fitting structural integrity suited to demanding hydraulic service. With an overall length of 1.810" and a secondary length of 1.240", the fitting is dimensionally compact while accommodating standard hose barb and ORB port configurations. It is part of Brennan Industries' 4601-NWO-FG series. California residents should note that this product is subject to Proposition 65 warnings.

SKU: 4601-05-06-NWO-FG

Supplier Part Number (MPN): 4601-05-06-NWO-FG

Specifications

Brand
BRENNAN
Connection Size 1
5/16 in
Connection Size 2
3/8 in
Connection Type
Barbed, Male SAE ORB
Connection Type 1
Hose Barbed
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1926, SAE J1231-2, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
11/16 in
l2 Dimensions
1.24 in
l Dimensions
1.81 in
Material
Steel
Material Construction
AISI C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
4601-NWO-FG Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.252 in
Thread Size
9/16-18
Tube Outside Diameter
0.31 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
06HB-06MAORB 90 ELB

4601-06-06-NWO

3/8 in

3/8 in

9/16-18

06HB-08MAORB 90 DEG ELBOW

4601-06-08

3/8 in

1/2 in

3/4-16

08HB-06MAORB 90 DEG ELBOW

4601-08-06-NWO-FG

1/2 in

3/8 in

9/16-18

08HB-08MB - 90 DEG.

4601-08-08-NWO-FG

1/2 in

1/2 in

3/4-16

10HB-08MAORB 90 DEG ELBOW

4601-10-08-NWO-FG

5/8 in

1/2 in

3/4-16

10HB-10MAORB 90 DEG ELBOW

4601-10-10-NWO-FG

5/8 in

5/8 in

7/8-14

90 DEG HOSE BARB 5/8IN X MALE ORB 3/4IN

4601-10-12-NWO-FG

5/8 in

3/4 in

1-1/16-12

12HB-12MAORB 90 DEG ELBOW

4601-12-12-NWO-FG

3/4 in

3/4 in

1-1/16-12

12HB-16MAORB 90 DEG ELBOW

4601-12-16-NWO

3/4 in

1 in

1-5/16-12

20HB-20MAORB 90 DEG ELBOW

4601-20-20-NWO-FG

1-1/4 in

1-1/4 in

1-5/8-12

24HB-20MAORB 90 DEG ELBOW

4601-24-20-NWO-FG

1-1/2 in

1-1/4 in

1-5/8-12

Product Questions & Answers (1)

Question by: Howard E on Apr 18, 2025, 9:41 AM
Is that o-ring boss end something that'll hold up with different hydraulic fluids?
Answer by: Customer Support on Apr 19, 2025, 8:25 PM
The adjustable O-ring Boss (ORB) connection uses an NBR o-ring seal, which provides a reliable seal with various hydraulic fluids.
