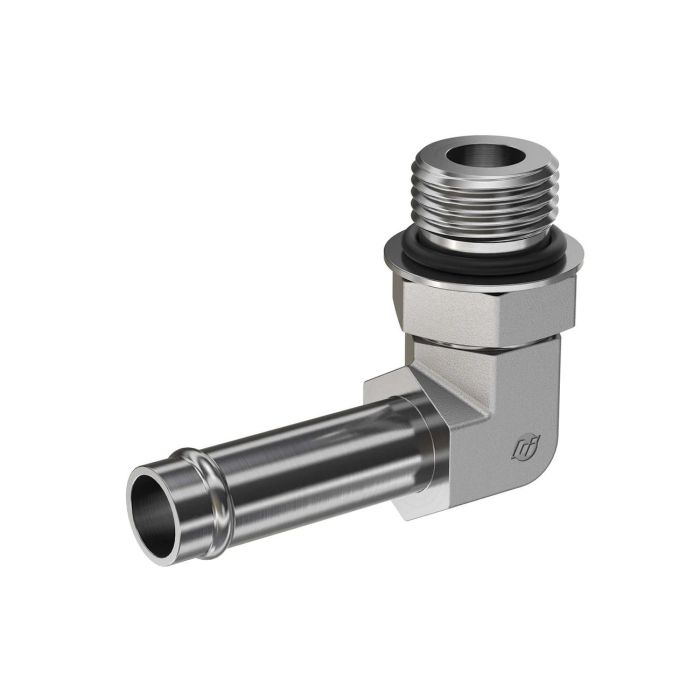

06HB-08MAORB 90 DEG ELBOW

Description & Features

A 90-degree elbow fitting designed to redirect hydraulic flow at a right angle, the 06HB-08MAORB 90 Deg Elbow connects a 3/8 in. hose barb to a 1/2 in. male O-ring boss (ORB) port. Manufactured by Brennan Industries, this fitting is suited for hydraulic lines where a compact directional change is needed within confined routing configurations.

The hose barb end provides a secure grip on compatible hose, while the male ORB thread offers a leak-resistant seal at the port connection. This combination makes the fitting well-suited for medium-pressure hydraulic circuits in mobile and industrial equipment.

SKU: 4601-06-08

Supplier Part Number (MPN): 4601-06-08-NWO-FG

Alternate Part Numbers: AFF1167-0806S

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Barbed, Male SAE ORB
Connection Type 1
Hose Barbed
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1926, SAE J1231-2
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
7/8 in
Material
Steel
Material Construction
AISI C1045 Steel
Operating Temperature
-40 to 250 deg F
Series
4601-NWO-FG Series
Thread Size
3/4-16

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
05HB-06MAORB 90 ELBOW FORGED

4601-05-06-NWO-FG

5/16 in

3/8 in

9/16-18

06HB-06MAORB 90 ELB

4601-06-06-NWO

3/8 in

3/8 in

9/16-18

08HB-06MAORB 90 DEG ELBOW

4601-08-06-NWO-FG

1/2 in

3/8 in

9/16-18

08HB-08MB - 90 DEG.

4601-08-08-NWO-FG

1/2 in

1/2 in

3/4-16

10HB-08MAORB 90 DEG ELBOW

4601-10-08-NWO-FG

5/8 in

1/2 in

3/4-16

10HB-10MAORB 90 DEG ELBOW

4601-10-10-NWO-FG

5/8 in

5/8 in

7/8-14

90 DEG HOSE BARB 5/8IN X MALE ORB 3/4IN

4601-10-12-NWO-FG

5/8 in

3/4 in

1-1/16-12

12HB-12MAORB 90 DEG ELBOW

4601-12-12-NWO-FG

3/4 in

3/4 in

1-1/16-12

12HB-16MAORB 90 DEG ELBOW

4601-12-16-NWO

3/4 in

1 in

1-5/16-12

20HB-20MAORB 90 DEG ELBOW

4601-20-20-NWO-FG

1-1/4 in

1-1/4 in

1-5/8-12

24HB-20MAORB 90 DEG ELBOW

4601-24-20-NWO-FG

1-1/2 in

1-1/4 in

1-5/8-12

Product Questions & Answers (3)

Question by: Brent C on Sep 25, 2025, 11:36 AM
Got a tight spot on a loader where the hose needs to make a right angle turn before connecting up to the port. This a 3/8 barb on one end and half-inch ORB on the other?
Answer by: Customer Support on Sep 27, 2025, 6:44 AM
That's what you've got. The barb end is 3/8 inch and the port end is a 1/2 inch male O-ring boss thread. That ORB connection gives you a solid, leak-resistant seal at the port, and the barb grips the hose without needing much extra hardware. For tight routing situations on mobile equipment like a loader, this fitting is a pretty natural fit.
Question by: Ross M on Apr 17, 2025, 9:52 AM
Reckon this'll fit a standard 3/8" hydraulic hose? Just wanna make sure before I order.
Answer by: Customer Support on Apr 18, 2025, 8:12 PM
Yes, this 90-degree elbow is designed to connect a 3/8 in. hose barb to a 1/2 in. male O-ring boss (ORB) port, so it should work with a standard 3/8" hydraulic hose.
Question by: Brent H on Jun 15, 2025, 8:14 PM
trying to hook a 3/8 hose onto a 1/2 ORB port with a tight bend, is this the right elbow?
Answer by: Customer Support on Jun 17, 2025, 2:59 PM
For that setup, it matches the connection sizes called out. One end is a 3/8 in. hose barb for the hose, and the other end is a 1/2 in. male O-ring boss (ORB) thread to screw into an ORB port, with a 90 degree turn to change direction in a tighter run.
