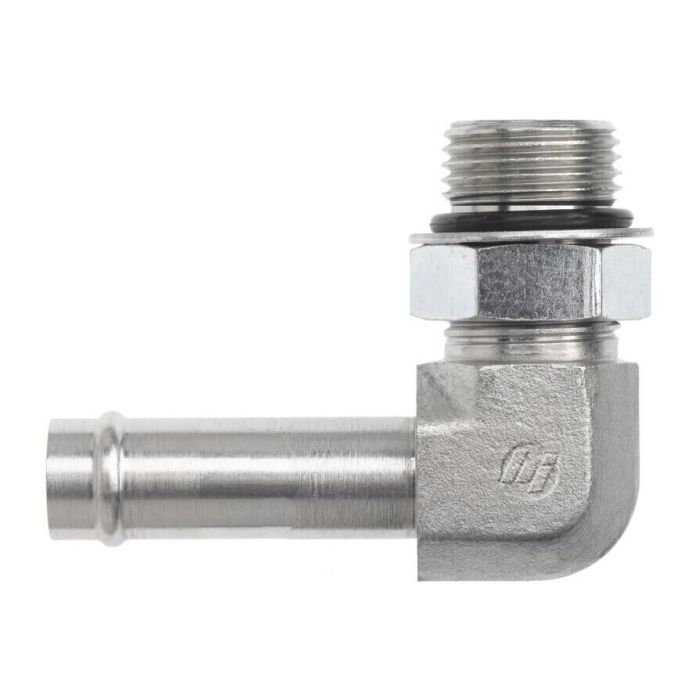

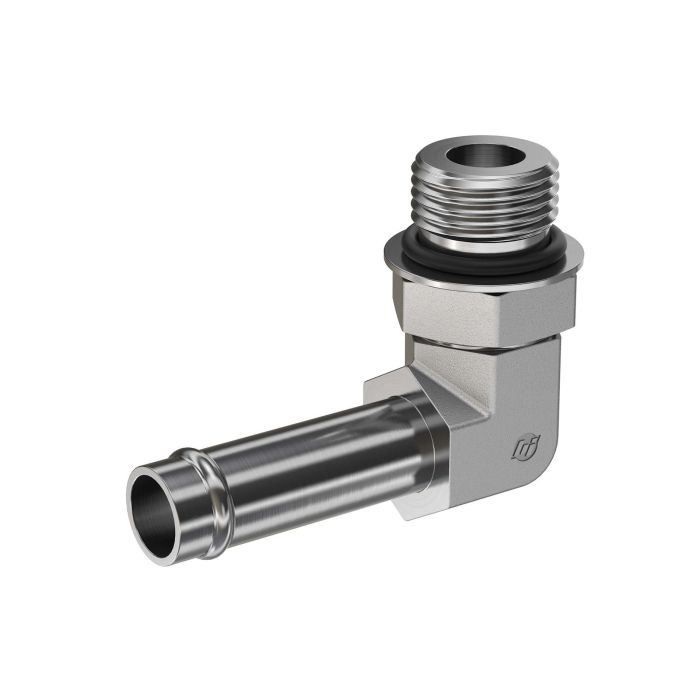

08HB-06MAORB 90 DEG ELBOW

Description & Features

Forged from steel, the 08HB-06MAORB 90 Deg Elbow from Brennan Industries provides a right-angle transition between a 1/2" OD hose barb and a 9/16-18 male SAE adjustable O-ring boss (ORB) port, conforming to SAE J514. The hose barb end accepts 1/2" OD tubing, while the male ORB end uses an NBR O-ring seal for reliable, leak-resistant connections at the mating port.

Steel forging construction gives this fitting the structural integrity suited to demanding hydraulic line applications. With an overall length of 1.980" and a secondary length of 1.250", it fits within compact routing configurations where a 90-degree change of direction is needed. The adjustable ORB thread allows clocking the fitting to align with the hose or line path before final torque.

SKU: 4601-08-06-NWO-FG

Supplier Part Number (MPN): 4601-08-06-NWO-FG

Alternate Part Numbers: 4601-08-06, AFF1167-0608S

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Barbed, Male SAE ORB
Connection Type 1
Hose Barbed
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1926, SAE J1231-2, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
11/16 in
l2 Dimensions
1-1/4 in
l Dimensions
1.98 in
Material
Steel
Material Construction
AISI C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
4601-NWO-FG Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
9/16-18
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
05HB-06MAORB 90 ELBOW FORGED

4601-05-06-NWO-FG

5/16 in

3/8 in

9/16-18

06HB-06MAORB 90 ELB

4601-06-06-NWO

3/8 in

3/8 in

9/16-18

06HB-08MAORB 90 DEG ELBOW

4601-06-08

3/8 in

1/2 in

3/4-16

08HB-08MB - 90 DEG.

4601-08-08-NWO-FG

1/2 in

1/2 in

3/4-16

10HB-08MAORB 90 DEG ELBOW

4601-10-08-NWO-FG

5/8 in

1/2 in

3/4-16

10HB-10MAORB 90 DEG ELBOW

4601-10-10-NWO-FG

5/8 in

5/8 in

7/8-14

90 DEG HOSE BARB 5/8IN X MALE ORB 3/4IN

4601-10-12-NWO-FG

5/8 in

3/4 in

1-1/16-12

12HB-12MAORB 90 DEG ELBOW

4601-12-12-NWO-FG

3/4 in

3/4 in

1-1/16-12

12HB-16MAORB 90 DEG ELBOW

4601-12-16-NWO

3/4 in

1 in

1-5/16-12

20HB-20MAORB 90 DEG ELBOW

4601-20-20-NWO-FG

1-1/4 in

1-1/4 in

1-5/8-12

24HB-20MAORB 90 DEG ELBOW

4601-24-20-NWO-FG

1-1/2 in

1-1/4 in

1-5/8-12

Product Questions & Answers (1)

Question by: Curt C on Sep 18, 2025, 6:25 AM
I'm just trying to make sure I get the right thing here... this elbow, it's got a SAE O-ring boss on one side and a hose barb on the other, right?
Answer by: Customer Support on Sep 19, 2025, 8:57 PM
That's correct. The 08HB-06MAORB elbow features a 9/16-18 male SAE adjustable O-ring boss (ORB) port on one end and a 1/2" OD hose barb on the other. This allows for a 90-degree connection between the two different fitting types.
