08HB-08MB - 90 DEG.

Description & Features

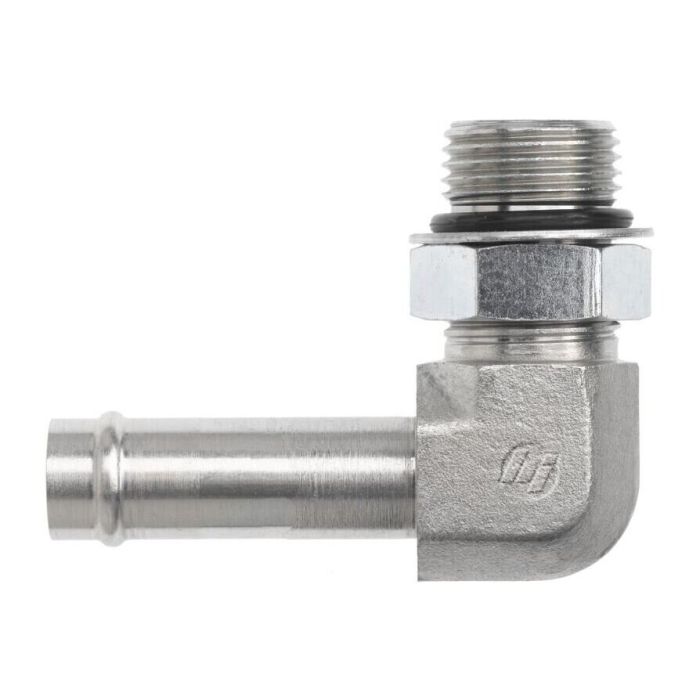

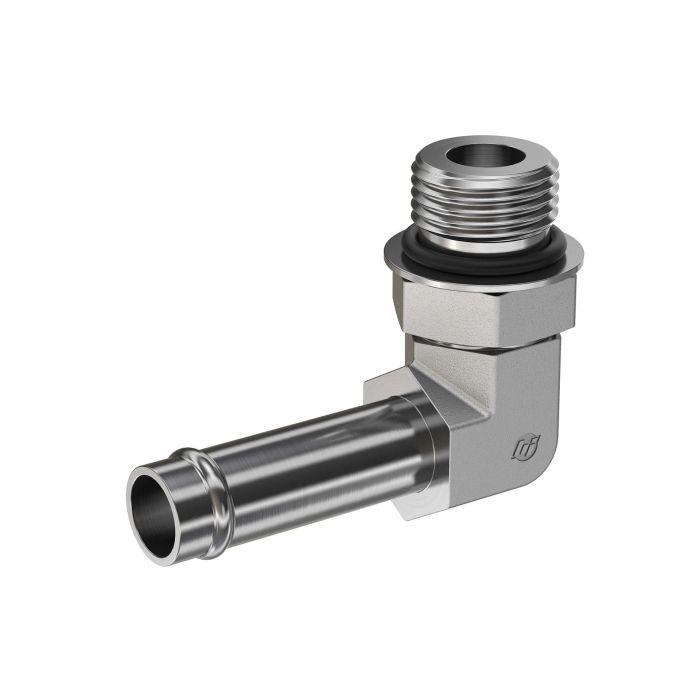

Crafted from robust steel forging, the 08HB-08MB - 90 DEG. elbow fitting is designed for reliable performance in hydraulic systems. Featuring a 90-degree configuration, this component facilitates efficient fluid flow in tight or angular installations. The male SAE adjustable O-ring boss ensures a secure connection, while the NBR O-ring seal material enhances leak prevention. With a hose barb connection of tube OD 1/2 inch and SAE J514 standard compliance, this fitting offers versatility and compatibility with various hydraulic setups.

The 08HB-08MB - 90 DEG. boasts precise dimensions with an overall length of 1.980 mm and a secondary length of 1.449 mm, ensuring a snug fit in your hydraulic assembly. Thread sizes include 3/4-16 for the male SAE connection, accommodating a variety of applications. As part of Brennan Industries' 4601-NWO-FG series, this fitting exemplifies high-quality manufacturing for demanding industrial environments.

SKU: 4601-08-08-NWO-FG

Supplier Part Number (MPN): 4601-08-08-NWO-FG

Alternate Part Numbers: 4601-08-08, 4601-08-08-NWO, AFF1167-0808S, C1GE66, MI-00316362, MINO-00028F64212

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Barbed, Male SAE ORB
Connection Type 1
Hose Barbed
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1926, SAE J1231-2, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
7/8 in
l2 Dimensions
1.449 in
l Dimensions
1.98 in
Material
Steel
Material Construction
AISI C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
4601-NWO-FG Series
Thread 2 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
3/4-16
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
05HB-06MAORB 90 ELBOW FORGED

4601-05-06-NWO-FG

5/16 in

3/8 in

9/16-18

06HB-06MAORB 90 ELB

4601-06-06-NWO

3/8 in

3/8 in

9/16-18

06HB-08MAORB 90 DEG ELBOW

4601-06-08

3/8 in

1/2 in

3/4-16

08HB-06MAORB 90 DEG ELBOW

4601-08-06-NWO-FG

1/2 in

3/8 in

9/16-18

10HB-08MAORB 90 DEG ELBOW

4601-10-08-NWO-FG

5/8 in

1/2 in

3/4-16

10HB-10MAORB 90 DEG ELBOW

4601-10-10-NWO-FG

5/8 in

5/8 in

7/8-14

90 DEG HOSE BARB 5/8IN X MALE ORB 3/4IN

4601-10-12-NWO-FG

5/8 in

3/4 in

1-1/16-12

12HB-12MAORB 90 DEG ELBOW

4601-12-12-NWO-FG

3/4 in

3/4 in

1-1/16-12

12HB-16MAORB 90 DEG ELBOW

4601-12-16-NWO

3/4 in

1 in

1-5/16-12

20HB-20MAORB 90 DEG ELBOW

4601-20-20-NWO-FG

1-1/4 in

1-1/4 in

1-5/8-12

24HB-20MAORB 90 DEG ELBOW

4601-24-20-NWO-FG

1-1/2 in

1-1/4 in

1-5/8-12

Product Questions & Answers (1)

Question by: Frank T on Oct 13, 2025, 3:37 PM
Reckon this'll hold up alright in a hydraulic system running at, say, 2000 psi? Just wanna make sure it can handle the pressure.
Answer by: Customer Support on Oct 14, 2025, 4:29 PM
While the listing doesn't specify a maximum pressure rating, the 08HB-08MB - 90 DEG. is crafted from robust steel forging, suggesting it's built for demanding industrial environments.
