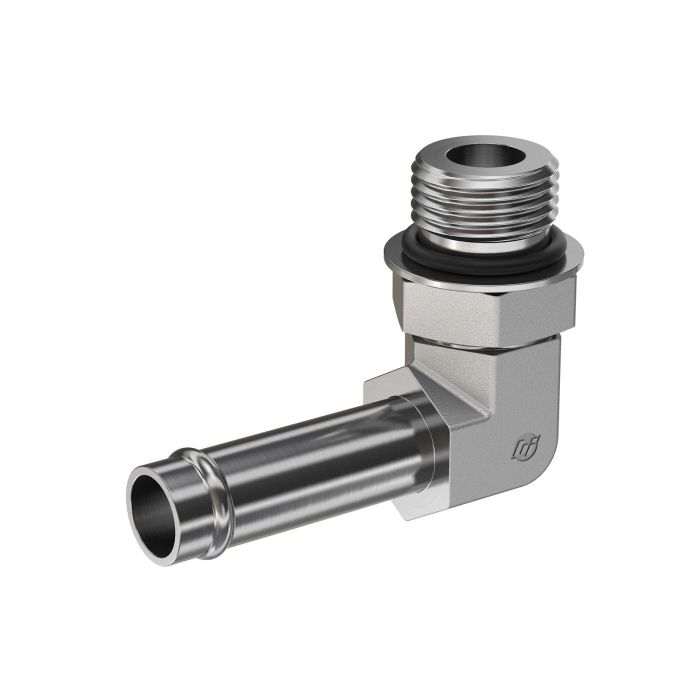

10HB-08MAORB 90 DEG ELBOW

Description & Features

Crafted from durable steel forging, the 10HB-08MAORB 90 DEG ELBOW is designed for high-performance hydraulic applications. This robust 90-degree elbow features a hose barb connection with a 5/8" tube outer diameter on one side, ensuring a secure fit for tubing systems. On the opposite side, it incorporates a 3/4-16 male SAE adjustable O-ring boss, adhering to SAE J514 standards, which guarantees a reliable seal and easy adjustability in demanding conditions.

The O-ring seal is made of NBR, known for its excellent resistance to oils and heat, providing added durability in various industrial environments. With overall lengths of 1.980 mm and 1.441 mm, this elbow fitting is compact yet efficient, making it suitable for tight spaces without compromising on functionality. Ideal for applications requiring robust and leak-free connections, this component is a valuable addition to any hydraulic setup.

SKU: 4601-10-08-NWO-FG

Supplier Part Number (MPN): 4601-10-08-NWO-FG

Alternate Part Numbers: 4601-10-08, 4601-10-08-NWO, AFF1167-0810S

Specifications

Brand
BRENNAN
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Barbed, Male SAE ORB
Connection Type 1
Hose Barbed
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1926, SAE J1231-2, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
7/8 in
l2 Dimensions
1.441 in
l Dimensions
1.98 in
Material
Steel
Material Construction
AISI C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
4601-NWO-FG Series
Thread 2 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.5 in
Thread Size
3/4-16
Tube Outside Diameter
5/8 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
05HB-06MAORB 90 ELBOW FORGED

4601-05-06-NWO-FG

5/16 in

3/8 in

9/16-18

06HB-06MAORB 90 ELB

4601-06-06-NWO

3/8 in

3/8 in

9/16-18

06HB-08MAORB 90 DEG ELBOW

4601-06-08

3/8 in

1/2 in

3/4-16

08HB-06MAORB 90 DEG ELBOW

4601-08-06-NWO-FG

1/2 in

3/8 in

9/16-18

08HB-08MB - 90 DEG.

4601-08-08-NWO-FG

1/2 in

1/2 in

3/4-16

10HB-10MAORB 90 DEG ELBOW

4601-10-10-NWO-FG

5/8 in

5/8 in

7/8-14

90 DEG HOSE BARB 5/8IN X MALE ORB 3/4IN

4601-10-12-NWO-FG

5/8 in

3/4 in

1-1/16-12

12HB-12MAORB 90 DEG ELBOW

4601-12-12-NWO-FG

3/4 in

3/4 in

1-1/16-12

12HB-16MAORB 90 DEG ELBOW

4601-12-16-NWO

3/4 in

1 in

1-5/16-12

20HB-20MAORB 90 DEG ELBOW

4601-20-20-NWO-FG

1-1/4 in

1-1/4 in

1-5/8-12

24HB-20MAORB 90 DEG ELBOW

4601-24-20-NWO-FG

1-1/2 in

1-1/4 in

1-5/8-12

Product Questions & Answers (1)

Question by: Troy R on Jan 1, 2026, 2:00 PM
Will this elbow fitting hold up to regular use in a hydraulic system, or is it more for light-duty stuff?
Answer by: Customer Support on Jan 3, 2026, 6:13 AM
Built from a steel forging, this 90-degree elbow is designed for high-performance hydraulic applications, so it should hold up well under regular use.
