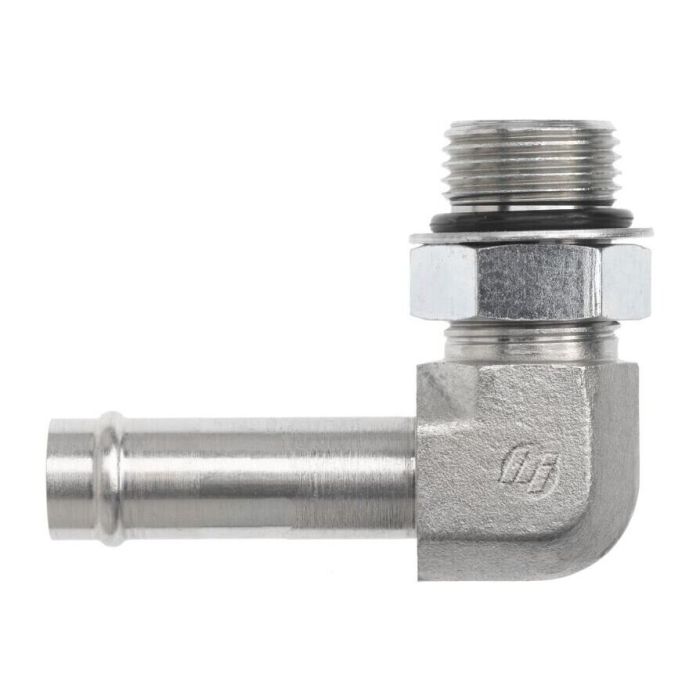

main product photo

90 DEG HOSE BARB 5/8IN X MALE ORB 3/4IN

Ask A Question

Description & Features

This forged steel 90-degree hose barb is designed for connecting a 5/8" ID hose to a 3/4" male SAE adjustable O-ring boss (ORB) port. The 90 DEG HOSE BARB 5/8IN X MALE ORB 3/4IN features NBR O-ring seal material for a secure, leak-free connection.

Manufactured by Brennan Industries to the 4601-NWO-FG series standards, this fitting ensures reliable performance in demanding hydraulic applications. It conforms to SAE J514 specifications for thread B2.

SKU: 4601-10-12-NWO-FG

Supplier Part Number (MPN): 4601-10-12-NWO-FG

Alternate Part Numbers: 4601-10-12, AFF1167-1210S

Specifications

Brand
BRENNAN
Connection Size 1
5/8 in
Connection Size 2
3/4 in
Connection Type
Barbed, Male SAE ORB
Connection Type 1
Hose Barbed
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1926, SAE J1231-2, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-1/4
l2 Dimensions
1.941 in
l Dimensions
2.07 in
Material
Steel
Material Construction
AISI C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
4601-NWO-FG Series
Thread 2 Drill Dimensions
0.609 in
Thread B1 Drill Dimensions
0.5 in
Thread Size
1-1/16-12
Tube Outside Diameter
5/8 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
05HB-06MAORB 90 ELBOW FORGED

4601-05-06-NWO-FG

5/16 in

3/8 in

9/16-18

06HB-06MAORB 90 ELB

4601-06-06-NWO

3/8 in

3/8 in

9/16-18

06HB-08MAORB 90 DEG ELBOW

4601-06-08

3/8 in

1/2 in

3/4-16

08HB-06MAORB 90 DEG ELBOW

4601-08-06-NWO-FG

1/2 in

3/8 in

9/16-18

08HB-08MB - 90 DEG.

4601-08-08-NWO-FG

1/2 in

1/2 in

3/4-16

10HB-08MAORB 90 DEG ELBOW

4601-10-08-NWO-FG

5/8 in

1/2 in

3/4-16

10HB-10MAORB 90 DEG ELBOW

4601-10-10-NWO-FG

5/8 in

5/8 in

7/8-14

12HB-12MAORB 90 DEG ELBOW

4601-12-12-NWO-FG

3/4 in

3/4 in

1-1/16-12

12HB-16MAORB 90 DEG ELBOW

4601-12-16-NWO

3/4 in

1 in

1-5/16-12

20HB-20MAORB 90 DEG ELBOW

4601-20-20-NWO-FG

1-1/4 in

1-1/4 in

1-5/8-12

24HB-20MAORB 90 DEG ELBOW

4601-24-20-NWO-FG

1-1/2 in

1-1/4 in

1-5/8-12

Product Questions & Answers (1)

Question by: Rex C on Dec 26, 2025, 7:36 AM
If I got a hydraulic hose with a 5/8" inside diameter, this oughta fit right up, right?
Answer by: Customer Support on Dec 27, 2025, 2:07 PM
That's right, this 90-degree hose barb is made specifically to connect a 5/8" ID hose to a 3/4" male SAE adjustable O-ring boss (ORB) port. Should be just what you need.
