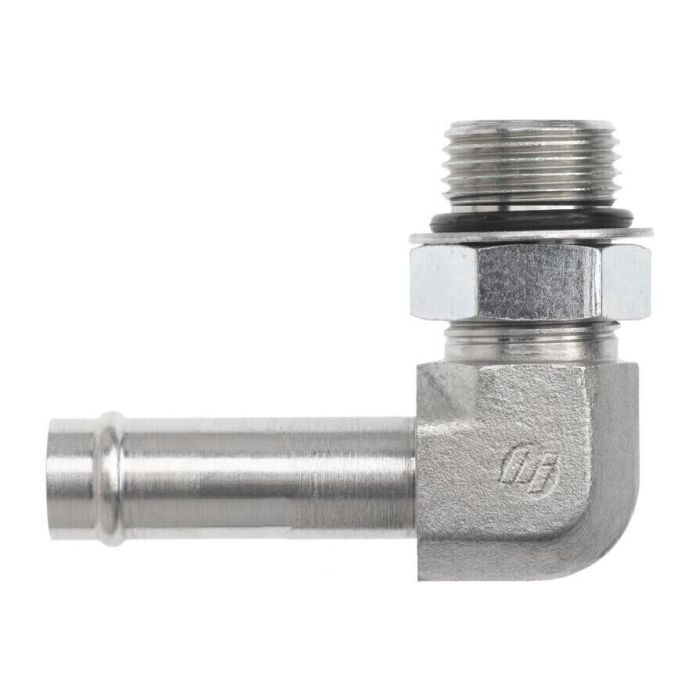

20HB-20MAORB 90 DEG ELBOW

Description & Features

Crafted from high-quality steel forging, the Brennan Industries 20HB-20MAORB 90 DEG ELBOW is engineered for durability and precision in hydraulic systems. Featuring a 90-degree elbow design, this component is tailored for efficient fluid transfer in demanding environments. The hose barb connection with a 1-1/4 inch tube outer diameter ensures secure and leak-resistant connections.

Equipped with an adjustable male SAE O-ring boss, this elbow adheres to the SAE J514 standard, ensuring compatibility and reliability in industrial applications. The O-ring seal, made from NBR (nitrile butadiene rubber), offers superior resistance to oil and fuels, making it ideal for high-pressure hydraulic systems.

SKU: 4601-20-20-NWO-FG

Supplier Part Number (MPN): 4601-20-20-NWO-FG

Alternate Part Numbers: 4601-20-20, 4601-20-20-NWO, AFF1167-2020S, C1FQ74, MI-08578794, MINO-00028X07240

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 4601-20-20-NWO-FG	Product Weight 1.00 lbs

Product Questions & Answers (1)

Question by: Kent P on Jun 23, 2025, 9:11 PM

got a 1-1/4 inch hose barb line I need to turn 90 degrees into a male ORB port, this thing gonna work for that?

Answer by: Customer Support on Jun 25, 2025, 7:26 AM

That's the setup this fitting handles. One end is a 1-1/4 inch hose barb, the other is a 1-5/8-12 male SAE adjustable O-ring boss, and the whole assembly sits at a 90-degree angle between the two. The O-ring seal material is NBR, and the body is forged steel. If your port matches that 1-5/8-12 SAE thread spec, you're good to go.
