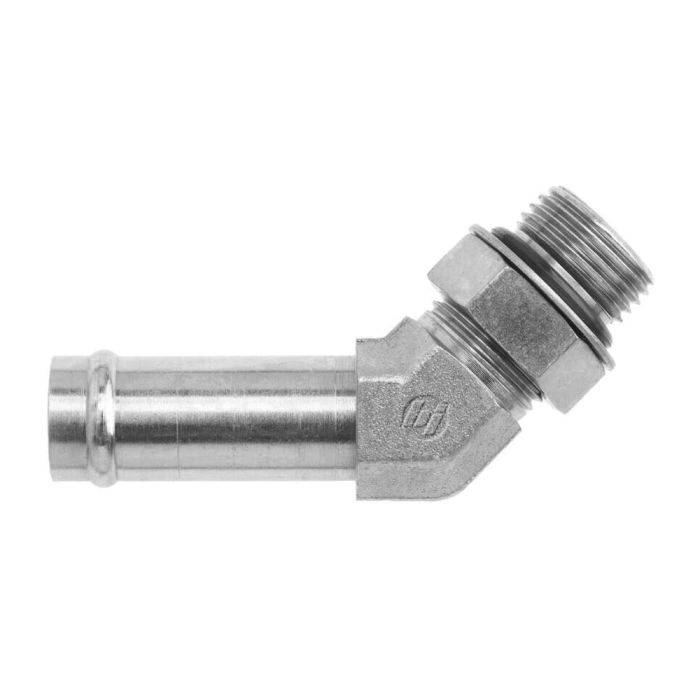

main product photo

08HB-06MAORB 45 DEG ELBOW

Ask A Question

Description & Features

This 45-degree elbow features a tube OD of 1/2" with a hose barb connection (B1) and a 9/16-18 male SAE adjustable O-ring boss (B2) according to SAE J514 standards.

Constructed from steel forging, this 08HB-06MAORB 45 DEG ELBOW is part of the 4603-NWO-FG series and utilizes NBR O-ring seal material.

SKU: 4603-08-06-NWO-FG

Supplier Part Number (MPN): 4603-08-06-NWO-FG

Alternate Part Numbers: 4603-08-06, 4603-08-06-NWO

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Barbed, Male SAE ORB
Connection Type 1
Hose Barbed
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1926, SAE J1231-2, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
11/16 in
l2 Dimensions
1.3 in
l Dimensions
1.76 in
Material
Steel
Material Construction
AISI C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
4603-NWO-FG Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
9/16-18
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Product Questions & Answers (1)

Question by: Lynn C on Jul 18, 2025, 11:20 AM
What kind of O-ring does this elbow use?
Answer by: Customer Support on Jul 19, 2025, 1:06 PM
This elbow utilizes an NBR O-ring seal.
