10HB-08MAORB 45 DEG ELBOW

Description & Features

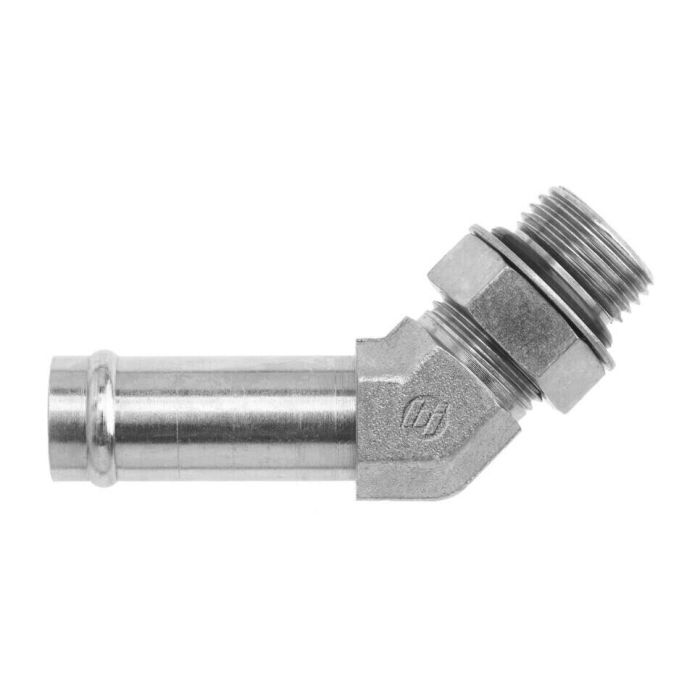

Forged from steel, the 10HB-08MAORB 45 Deg Elbow connects a 5/8" OD hose barb to a 3/4-16 Male SAE Adjustable O-Ring Boss (ORB) port at a 45-degree angle, making it well-suited for routing hydraulic lines in space-constrained assemblies. The hose barb end accepts 5/8" OD tubing, while the ORB end conforms to SAE J514 and includes an NBR o-ring seal for reliable, leak-resistant connections.

Manufactured by Brennan Industries under the 4603-Nwo-Fg series, this forged steel construction provides solid mechanical integrity for hydraulic circuit applications. The adjustable ORB thread allows for directional positioning at installation, adding flexibility during assembly.

SKU: 4603-10-08-NWO-FG

Supplier Part Number (MPN): 4603-10-08-NWO-FG

Alternate Part Numbers: 4603-10-08, 4603-10-08-NWOFG, MI-03518491, MINO-00028J75339

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 4603-10-08-NWO-FG	Product Weight 1.00 lbs

Product Questions & Answers (2)

Question by: Rex M on Feb 13, 2026, 3:23 PM

Will this fitting work with a standard 5/8" OD tube?

Answer by: Customer Support on Feb 15, 2026, 2:46 PM

It's designed to adapt a 5/8" outer diameter tube to a -8 ORB (O-ring Boss) port.

Question by: Warren S on May 2, 2025, 11:16 AM

fitting goes on a 5/8 tube and threads into a -8 ORB port, that right?

Answer by: Customer Support on May 3, 2025, 1:49 PM

Correct on both counts. The barb end accepts 5/8 inch OD tubing, and the male thread is a 3/4-16 SAE adjustable O-ring boss, which is the standard -8 ORB port size. The O-ring is NBR, and the thread spec follows SAE J514, so it seats properly in a standard ORB boss. The 45 degree angle helps when you need to route hose out of a tight spot without putting a hard bend right at the port.
