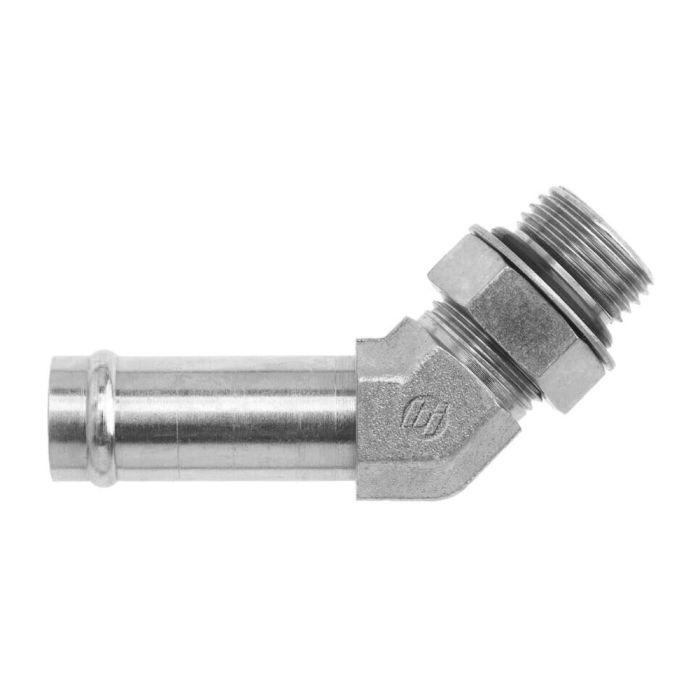

main product photo

10HB-10MAORB 45 DEG ELBOW

Ask A Question

Description & Features

This Brennan Industries 45-degree forged elbow adapter is designed for hydraulic applications requiring a 5/8" hose barb connection (B1) to a 7/8-14 male SAE adjustable O-ring boss (B2) according to SAE J514 standards.

Constructed from quality steel forging, the 10HB-10MAORB 45 DEG ELBOW features a nitrile (NBR) O-ring seal. The Brennan Series is 4603-NWO-FG.

SKU: 4603-10-10-NWO-FG

Supplier Part Number (MPN): 4603-10-10-NWO-FG

Alternate Part Numbers: 4603-10-10, 4603-10-10-NWO, MI-00316389, MINO-00028F64221

Specifications

Brand
BRENNAN
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Barbed, Male SAE ORB
Connection Type 1
Hose Barbed
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1926, SAE J1231-2, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1 x 1 in
l2 Dimensions
1.516 in
l Dimensions
1.846 in
Material
Steel
Material Construction
AISI C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
4603-NWO-FG Series
Thread 2 Drill Dimensions
0.484 in
Thread B1 Drill Dimensions
0.5 in
Thread Size
7/8-14
Tube Outside Diameter
5/8 in

Product Questions & Answers (2)

Question by: Shawn R on Aug 17, 2025, 12:20 PM
fitting's got a hose barb on one end and threads on the other -- what size hose does the barb side actually fit?
Answer by: Customer Support on Aug 18, 2025, 1:25 PM
The barb end is sized for 5/8 inch tube OD hose. That's the outside diameter of the hose you'd be connecting, so make sure you're matching to the OD and not the ID when you're shopping for compatible hose.
Question by: Howard S on Jul 30, 2025, 7:51 AM
What size is that tube fitting end? I'm needin' somethin' that'll fit a 5/8" OD hose.
Answer by: Customer Support on Jul 31, 2025, 9:48 PM
This adapter's tube OD end is sized for 5/8" hose, just like you need.
