4603-20-12-NWO-FG

Description & Features

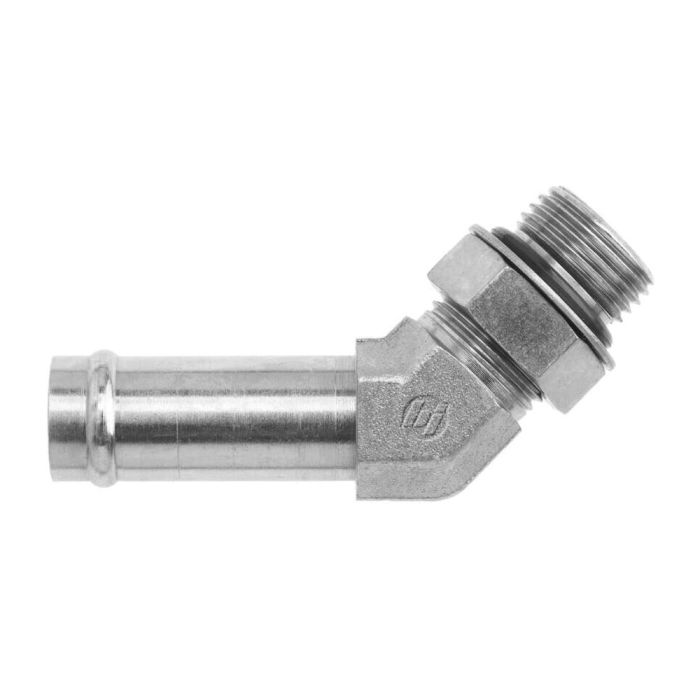

This 4603-20-12-NWO-FG forged elbow features a 45-degree angle and is constructed from durable steel forging material. It is part of the Brennan 4603-NWO-FG series.

The fitting incorporates a hose barb connection with a 1-1/4 inch tube OD, and a 1-1/16-12 Male SAE Adjustable O-Ring Boss connection conforming to SAE J514 standards. The O-ring seal is made of NBR material.

SKU: 4603-20-12-NWO-FG

Supplier Part Number (MPN): 4603-20-12-NWO-FG

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
3/4 in
Connection Type
Barbed, Male SAE ORB
Connection Type 1
Hose Barbed
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1926, SAE J1231-2, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1-1/4
l2 Dimensions
1.84 in
l Dimensions
2.059 in
Material
Steel
Material Construction
AISI C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
4603-NWO-FG Series
Thread 2 Drill Dimensions
0.609 in
Thread B1 Drill Dimensions
1.094 in
Thread Size
1-5/16-12
Tube Outside Diameter
1-1/4 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
08HB-06MAORB 45 DEG ELBOW

4603-08-06-NWO-FG

1/2 in

3/8 in

9/16-18

10HB-08MAORB 45 DEG ELBOW

4603-10-08-NWO-FG

5/8 in

1/2 in

3/4-16

10HB-10MAORB 45 DEG ELBOW

4603-10-10-NWO-FG

5/8 in

5/8 in

7/8-14

BRENNAN 10HB-12MAORB 45 ELBOW FORGED

4603-10-12-NWO-FG

5/8 in

3/4 in

7/16-20

16HB-12MAORB 45 ELBOW FORGED

4603-16-12-NWO-FG

1 in

3/4 in

1-1/16-12

20HB-16MAORB 45 DEG ELBOW

4603-20-16-NWO-FG

1-1/4 in

1 in

1-5/16-12

Product Questions & Answers (1)

Question by: Lee F on Jul 9, 2025, 12:38 PM
What size is that tube end? I wanna make sure it'll fit my setup.
Answer by: Customer Support on Jul 11, 2025, 10:58 AM
The hose barb connection is made for a 1-1/4 inch tube OD.
