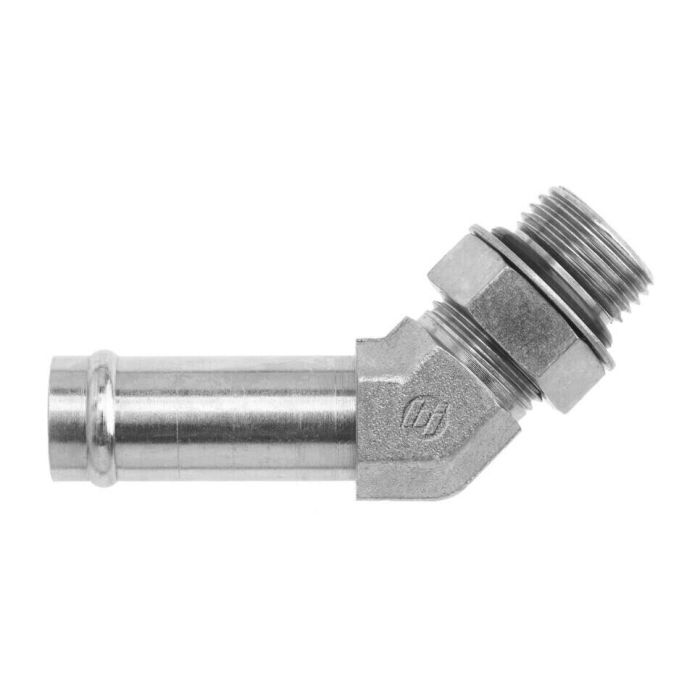

20HB-16MAORB 45 DEG ELBOW

Forged from steel, the 20HB-16MAORB 45 Deg Elbow is a 45-degree hydraulic elbow fitting designed to transition between a 1-1/4" OD hose barb connection and a 1-5/16-12 Male SAE Adjustable O-Ring Boss (ORB) port, conforming to SAE J514. The hose barb end accepts a tube OD of 1-1/4", while the male ORB end uses a 1-5/16-12 thread with an NBR o-ring seal, providing reliable leak resistance at the port interface.

Part of the Brennan Industries 4603-Nwo-Fg series, this fitting is suited for hydraulic lines where a directional change from a hose assembly to a ported component is required. The forged steel construction supports use in demanding industrial hydraulic circuits. Overall length measures 2.060" (L) with a secondary length of 1.840" (L2), and the C hex dimension is 1.312".

SKU: 4603-20-16-NWO-FG

Supplier Part Number (MPN): 4603-20-16-NWO-FG

Alternate Part Numbers: 4603-20-16
