06HB-06MORB STRAIGHT

Description & Features

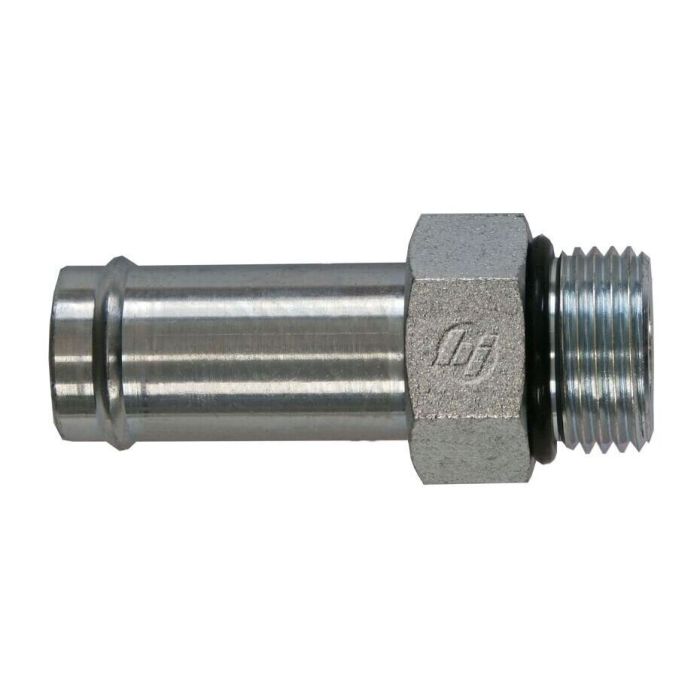

The 06HB-06MORB STRAIGHT from Brennan Industries Inc is designed with precision and robustness making it an excellent fit for industry-specific applications. This fitting is constructed from straight steel ensuring durability and long-lasting performance. It features a hose barb connection on one end with a tube outer diameter of 3/8 inches and a male SAE O-ring boss with the thread size of 9/16-18 meeting SAE J514 standards on the other end.

Overall length measures are 1.500 mm and 0.730 mm for Length L2 respectively ensuring a precise fit within various setups. The use of NBR material for the O-ring/seal provides dependable sealing capabilities.

Thread dimensions for B1 and B2 are 0.295 mm and 0.297 mm facilitating secure connections and compatibility with related components.

California residents should be aware of the PROP-65 WARNING associated with this product.

Supplier Part Number: 4604-06-06-O

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 4604-06-06-O	Product Weight 0.07 lbs

Product Questions & Answers (2)

Question by: Frank S on Jun 28, 2025, 9:53 PM

got a 3/8 hose on hand. is this fitting the one with a barb on one side and a 9/16-18 o-ring boss on the other?

Answer by: Customer Support on Jun 30, 2025, 6:14 AM

On the hose end, it uses a hose barb sized for 3/8 inch tube OD. The other end is a male SAE O-ring boss with 9/16-18 threads built to SAE J514, and it seals with an NBR O-ring.

Question by: Diane O on Oct 6, 2025, 3:22 PM

So this is a straight fitting, right? Just wanna make sure I'm picturing it correctly.

Answer by: Customer Support on Oct 7, 2025, 9:37 PM

That's right, this is a straight fitting designed to provide a direct connection between a hose barb and a male SAE O-ring boss.
