06HB-08MORB Straight

Description & Features

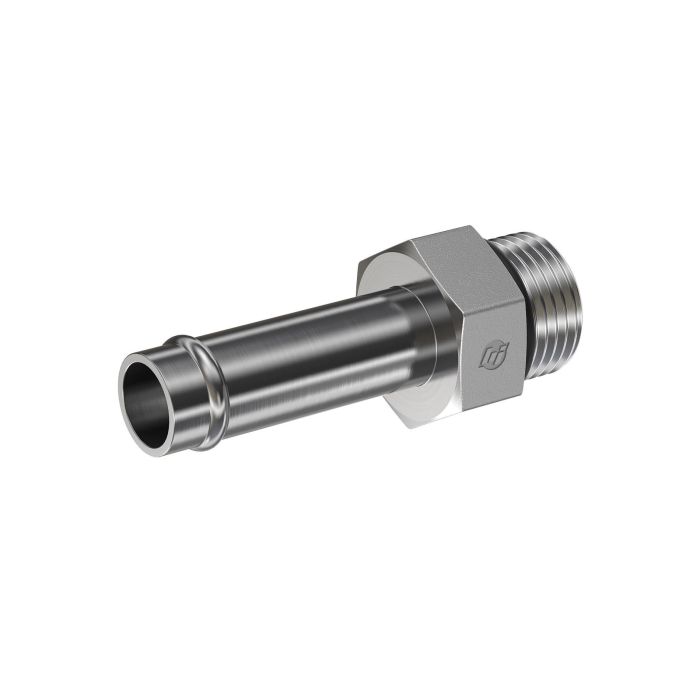

The 06HB-08MORB Straight from Brennan Industries Inc is made of straight steel ensuring durability and reliability. This component features a hose barb with a tube outer diameter of 3/8 inches. On the other end it includes a male SAE O-ring boss thread conforming to SAE J514 specifications with a size of 3/4-16. Our high-quality NBR O-ring provides an excellent seal for various applications. The overall length measures 1.500 mm with a secondary length of 0.850 mm making it a practical option for specific industrial uses.

Supplier Part Number: 4604-06-08-O

California Residents: PROP-65 WARNING

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Barbed, Male SAE ORB
Connection Type 1
Hose Barbed
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1926, SAE J1231-2, SAE J514
Dimensions
2.3 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
7/8 in
l2 Dimensions
0.85 in
l Dimensions
1-1/2 in
Material
Steel
Material Construction
12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
4604-O Series
Thread 2 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.295 in
Thread Size
3/4-16
Tube OD
3/8 in
Tube Outside Diameter
0.38 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
05HB-04MORB STRAIGHT

4604-05-04-O

5/16 in

1/4 in

7/16-20

4604-05-05-O

4604-05-05-O

5/16 in

5/16 in

1/2-20

.

4604-06-04-O

3/8 in

1/4 in

7/16-20

06HB-06MORB STRAIGHT

4604-06-06-O

3/8 in

3/8 in

9/16-18

08HB-08MORB STRAIGHT

4604-08-08-O

1/2 in

1/2 in

3/4-16

10HB-08MORB STRAIGHT

4604-10-08-O

5/8 in

1/2 in

3/4-16

10HB-10MORB STRAIGHT

4604-10-10-O

5/8 in

5/8 in

7/8-14

BEADED HOSE STEM

4604-10-12-O

5/8 in

3/4 in

1-1/16-12

12HB-12MORB STRAIGHT

4604-12-12-O

3/4 in

3/4 in

1-1/16-12

STRAIGHT ADAPTER -3/4IN BARB X 1 IN MALE

4604-12-16-O

3/4 in

1 in

1-5/16-12

16HB-12MORB STRAIGHT

4604-16-12-O

1 in

3/4 in

1-1/16-12

16HB-20MORB Straight

4604-16-20-O

1 in

1-1/4 in

1-5/8-12

20HB-16MORB STRAIGHT

4604-20-16-O

1-1/4 in

1 in

1-5/16-12

20HB-20MORB STRAIGHT

4604-20-20-O

1-1/4 in

1-1/4 in

1-5/8-12

20HB-24MORB STRAIGHT

4604-20-24-O

1-1/4 in

1-1/2 in

1-7/8-12

BEADED HOSE STEM

4604-24-16-O

1-1/2 in

1 in

1-5/16-12

HB-MORB Straight HB-24 / ORB-20

4604-24-20-O

1-1/2 in

1-1/4 in

1-5/8-12

BEADED HOSE STEM

4604-24-24-O

1-1/2 in

1-1/2 in

1-7/8-12

Product Questions & Answers (2)

Question by: Stan M on Sep 24, 2025, 8:38 AM
Will this here fitting work for hydraulic lines on my tractor?
Answer by: Customer Support on Sep 25, 2025, 5:45 PM
It's designed for use with a 3/8 inch outer diameter hose and a 3/4-16 male SAE O-ring boss thread, meeting SAE J514 specs, so check those measurements against your tractor's lines.
Question by: Ross B on Dec 24, 2025, 6:11 PM
got a 3/8 hose, is this the kind of fitting that just pushes into the hose and then threads into a port?
Answer by: Customer Support on Dec 26, 2025, 6:12 AM
Function-wise, it is a straight hose barb on one end sized for 3/8 inch tube OD, and a male SAE O-ring boss on the other end with 3/4-16 threads per SAE J514. The seal comes from the included NBR O-ring on the ORB side.
