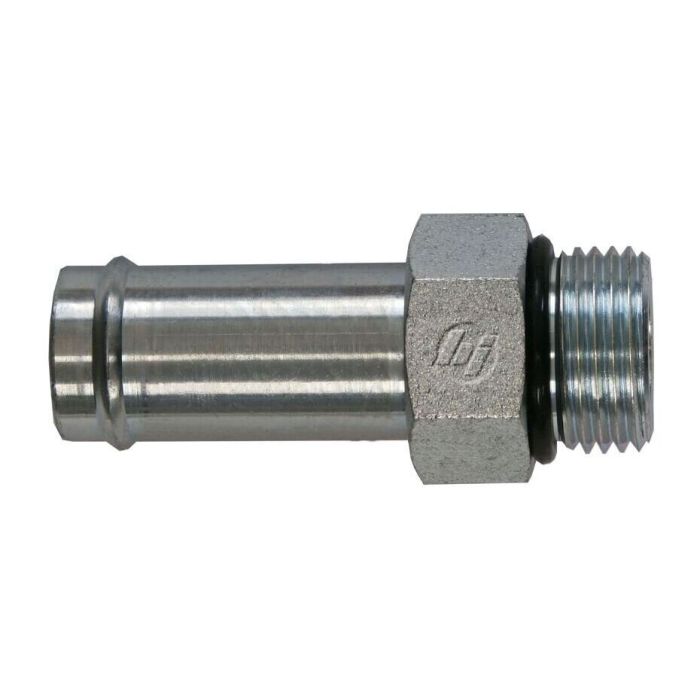

08HB-08MORB STRAIGHT

Description & Features

The 08HB-08MORB STRAIGHT from Brennan Industries Inc is engineered from straight steel offering reliable performance for industrial applications. This product features an NBR O-ring/seal material designed to withstand various operational environments.

With an overall length of 1.500 mm and an additional length of 0.850 mm the 08HB-08MORB Straight combines compact design with robust functionality. The hose barb thread type B1 has a drill measurement of 0.406 mm while the male SAE O-ring boss thread type B2 conforms to SAE J514 standards with a 3/4-16 size and a drill size of 0.391 mm.

California residents should note the PROP-65 warning associated with this product.

Supplier Part Number: 4604-08-08-O

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 4604-08-08-O	Product Weight 0.13 lbs

Product Questions & Answers (3)

Question by: Billy W on Apr 7, 2026, 7:45 AM

trying to replace a fitting i busted, is this one the style thats got a 1/2 tube OD hose barb on one end and a 3/4-16 male ORB on the other?

Answer by: Customer Support on Apr 8, 2026, 9:33 PM

You are looking at a straight steel adapter with a hose barb end sized for 1/2 tube OD (B1), and the other end is a male SAE O-ring boss thread per SAE J514 in 3/4-16 (B2). It also uses an NBR O-ring seal.

Question by: Connie P on Apr 6, 2026, 2:56 PM

What kind of seal material does this fitting use, and will it hold up alright in a standard hydraulic fluid setup?

Answer by: Customer Support on Apr 8, 2026, 1:36 PM

NBR is the seal material on this one, which handles mineral-based hydraulic oils well in typical industrial setups. It's a common and reliable choice for most standard hydraulic fluid applications, so for everyday shop or equipment use you should be in good shape.

Question by: Rex G on Dec 18, 2025, 12:33 PM

What size is that o-ring boss thread?

Answer by: Customer Support on Dec 20, 2025, 8:03 AM

The male SAE O-ring boss thread measures 3/4-16, conforming to SAE J514 standards.
