10HB-08MORB STRAIGHT

Description & Features

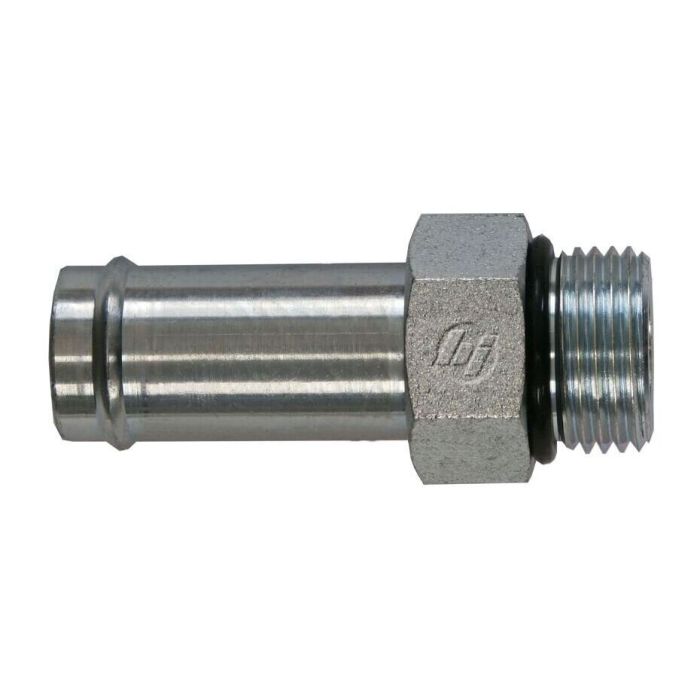

The 10HB-08MORB Straight adapter from Brennan Industries Inc. is engineered with a raw material type of straight steel ensuring durability and reliability in various industrial applications. The adapter features a hose barb thread B1 drill of 0.500 mm and a tube OD of 5/8 making it fit seamlessly in specialized setups.

The male SAE O-ring boss thread B2 measures 3/4-16 and adheres to the SAE J514 specification. This ensures compliance with strict industry standards. O-ring/seal material crafted from NBR offers excellent resistance to oils and high temperatures.

Overall length dimensions are 1.500 mm for L and 0.882 mm for L2 providing a compact form factor without compromising on performance.

Supplier Part Number: 4604-10-08-O

MPN: 4604-10-08-O

Notice for California Residents: PROP-65 WARNING.

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 4604-10-08-O	Product Weight 0.15 lbs

Product Questions & Answers (3)

Question by: Wade P on Oct 20, 2025, 8:56 PM

seal material on this one is NBR -- that gonna hold up alright running hydraulic oil through it regular?

Answer by: Customer Support on Oct 22, 2025, 6:09 PM

NBR is actually a solid choice for hydraulic oil service. It resists petroleum-based oils well and handles the heat that comes with normal hydraulic system operation. For standard hydraulic fluid applications, you're in good shape with what this adapter uses.

Question by: Randy T on Aug 30, 2025, 4:51 PM

got a hose with a 5/8 tube OD, will this barb end match up right?

Answer by: Customer Support on Aug 31, 2025, 8:02 PM

For the hose side, the B1 end is a hose barb sized for tube OD 5/8, with a listed B1 drill of 0.500 mm. That combination is what you would match to a 5/8 tube OD hose connection.

Question by: Danny S on Oct 2, 2025, 9:42 AM

Is this the right fitting if I need somethin' with SAE J514 compliance?

Answer by: Customer Support on Oct 4, 2025, 6:33 AM

Yes, this adapter is manufactured to meet the SAE J514 specification, confirming it adheres to that industry standard.
