12HB-08MORB STRAIGHT

Ask A Question

Description & Features

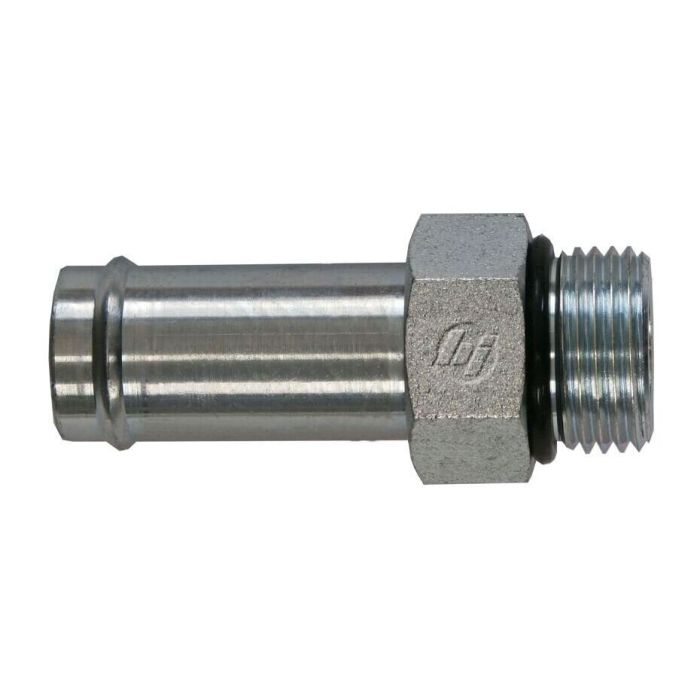

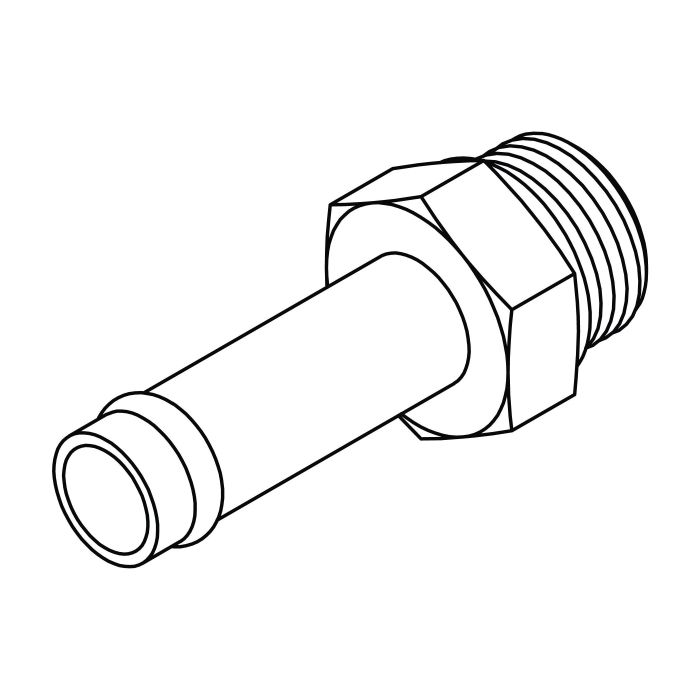

This straight steel fitting features a 3/4-inch hose barb for secure connection on one end and a 3/4-16 male SAE O-ring boss on the other. The 12HB-08MORB STRAIGHT is part of the 4604-O series.

It is manufactured to SAE J514 standards, ensuring reliable performance in demanding hydraulic applications. The fitting uses an NBR O-ring seal to provide a leak-proof connection.

SKU: 4604-12-08-O

Supplier Part Number (MPN): 4604-12-08

Specifications

Brand
Tompkins®
Brennan O-ring Seal Material
NBR
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Barbed, Male SAE ORB
Connection Type 1
Hose Barbed
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J514
Dimensions
1-1/2 in L
Fitting Type
Hose Fitting
Material
Steel
Material Construction
Steel
Series
4604-O Series
Thread Size
3/4-16

Product Questions & Answers (1)

Question by: Tommy M on Jan 30, 2026, 9:09 AM
I need a straight fitting with a hose barb on one side and an O-ring boss on the other, reckon this'll do the trick?
Answer by: Customer Support on Jan 31, 2026, 4:02 PM
This straight steel fitting has a 3/4-inch hose barb on one end and a 3/4-16 male SAE O-ring boss on the other, so it sounds like it should be exactly what you need. Just be sure your other components match those sizes.
