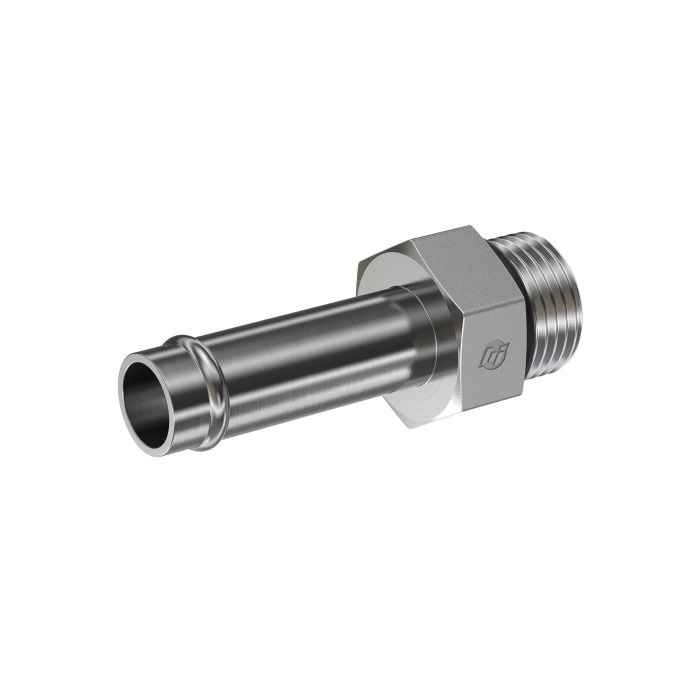

12HB-12MORB STRAIGHT

Ask A Question

Description & Features

The 12HB-12MORB STRAIGHT adapter by Brennan Industries Inc provides a highly reliable connection with its NBR o-ring material. Designed for industrial applications this adapter features a male SAE O-ring boss and hose barb connection.

Constructed from straight steel it ensures durability and high performance in demanding environments. The adapter complies with SAE J514 specifications with thread sizes of TUBE OD 3/4 and 1-1/16-12 respectively.

Measuring 1.500 mm in overall length and 1.100 mm in overall length L2 it offers precision in assembly. The threaded components have drill sizes of 0.626 mm and 0.609 mm respectively.

Supplier Part Number: 4604-12-12-O

MPN: 4604-12-12-O

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Barbed, Male SAE ORB
Connection Type 1
Hose Barbed
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1926, SAE J1231-2, SAE J514
Dimensions
2.59 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/4
l2 Dimensions
1.1 in
l Dimensions
1-1/2 in
Material
Steel
Material Construction
12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
4604-O Series
Thread 2 Drill Dimensions
0.609 in
Thread B1 Drill Dimensions
0.626 in
Thread Size
1-1/16-12
Tube Outside Diameter
3/4 in

Product Questions & Answers (2)

Question by: Judy W on Feb 13, 2026, 8:21 PM
what's the o-ring material on this fitting, and will it hold up with standard hydraulic fluid?
Answer by: Customer Support on Feb 15, 2026, 5:01 PM
NBR is the seal material here, which handles petroleum-based hydraulic fluids just fine in most industrial setups. It's a common and dependable choice for everyday hydraulic lines where you're not dealing with anything exotic like phosphate ester or certain synthetics.
Question by: Roger R on Jan 5, 2026, 9:57 AM
What size hose does this barb fitting take? Just wanna make sure I'm gettin' the right one.
Answer by: Customer Support on Jan 6, 2026, 6:06 PM
It's designed for a hose with a 3/4 inch tube OD.
