16HB-16MORB STRAIGHT

Ask A Question

Description & Features

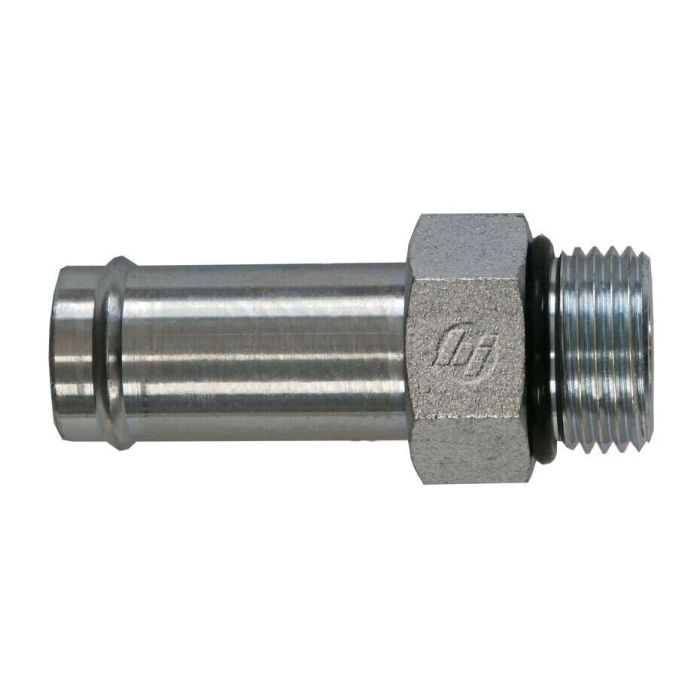

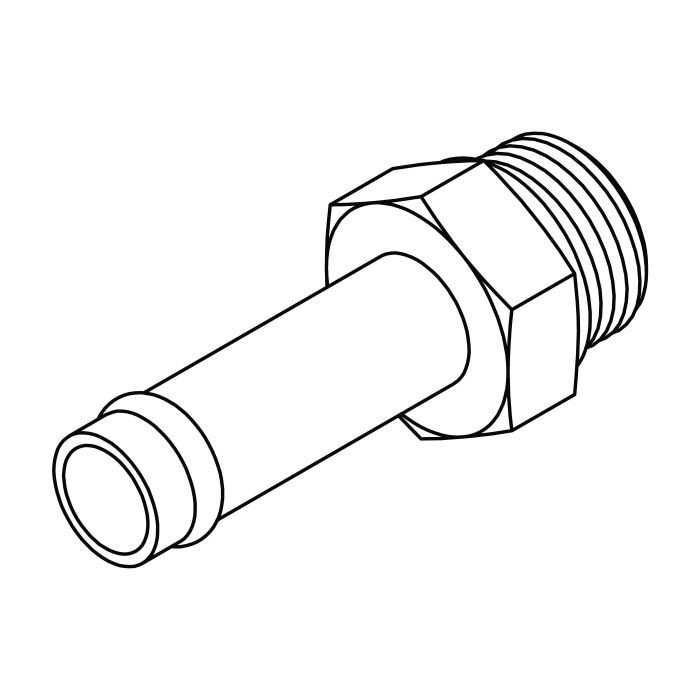

A straight steel hose barb-to-ORB adapter, the 16HB-16MORB Straight connects a 1-inch OD hose barb to a 1-5/16-12 Male SAE O-Ring Boss port conforming to SAE J514. The straight configuration keeps the connection inline, suited for hydraulic assemblies where a direct, axial transition between hose and ORB-ported components is required.

Constructed from straight steel with an NBR O-ring seal, this fitting from Tompkins Industries is part of the Brennan 4604-O series. The NBR seal material provides reliable fluid compatibility across a broad range of hydraulic media. Overall installed length measures 1.500 inches, with a secondary length dimension of 1.100 inches. California residents should note that this product is subject to Proposition 65 requirements.

SKU: 4604-16-16-O

Supplier Part Number (MPN): 4604-16-16

Specifications

Brand
Tompkins®
Brennan O-ring Seal Material
NBR
Connection Size 1
1 in
Connection Size 2
1-5/16 in
Connection Type
Barbed, Male SAE ORB
Connection Type 1
Hose Barbed
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J514
Dimensions
1-1/2 in L
Fitting Type
Hose Fitting
Material
Steel
Material Construction
Steel
Series
4604-O Series
Thread Size
5/16-12

Product Questions & Answers (1)

Question by: Stan H on Aug 6, 2025, 2:35 PM
Is this the right fitting to go from a hose to an o-ring boss port?
Answer by: Customer Support on Aug 7, 2025, 8:46 PM
Yes, this straight adapter is designed to connect a 1-inch OD hose barb to a 1-5/16-12 Male SAE O-Ring Boss port.
