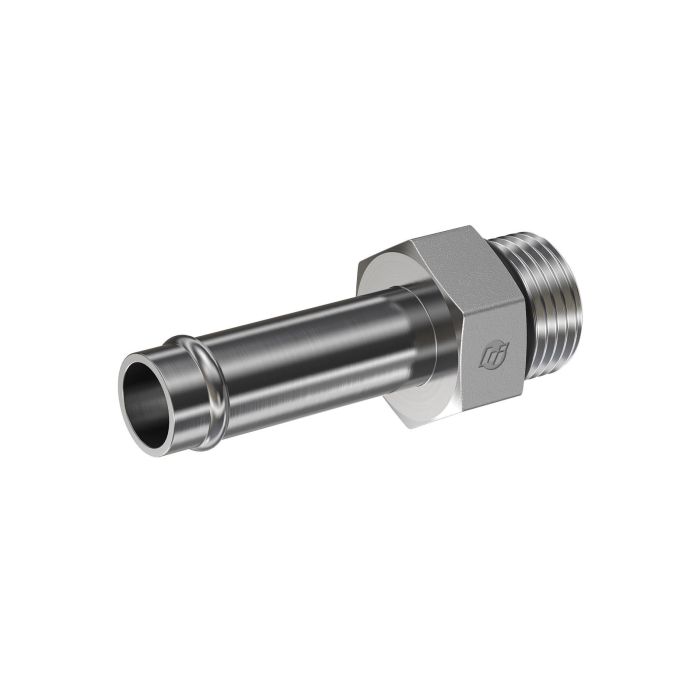

main product photo

16HB-20MORB Straight

Ask A Question

Description & Features

Crafted from durable straight steel, the 16HB-20MORB Straight fitting is engineered to provide robust and reliable connections in hydraulic systems. Featuring a tube OD of 1 inch, this fitting incorporates a hose barb connection for secure attachment. The male SAE O-ring boss thread, compliant with SAE J514 specifications, ensures a tight and leak-free seal, enhancing system efficiency.

The fitting's NBR O-ring seal material is selected for its excellent resistance to oil and fuels, making it suitable for demanding industrial environments. With overall lengths of 1.200 mm and 1.500 mm, the fitting offers versatility in various applications. The Brennan Industries brand guarantees precision engineering and quality construction, making it a trusted choice for professionals.

SKU: 4604-16-20-O

Supplier Part Number (MPN): 4604-16-20-O

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1-1/4 in
Connection Type
Barbed, Male SAE ORB
Connection Type 1
Hose Barbed
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1926, SAE J1231-2, SAE J514
Dimensions
2.7 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-7/8 in
l2 Dimensions
1.2 in
l Dimensions
1-1/2 in
Material
Steel
Material Construction
12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
4604-O Series
Thread 2 Drill Dimensions
1.078 in
Thread B1 Drill Dimensions
0.843 in
Thread Size
1-5/8-12
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Question by: Eddie E on Dec 11, 2025, 7:51 AM
Hey, will this here fitting work with standard hydraulic hoses? Just want to make sure before I order.
Answer by: Customer Support on Dec 12, 2025, 6:09 PM
This fitting uses a hose barb connection, so it's designed for secure attachment to compatible hoses. Make sure your hose inner diameter matches the fitting's 1-inch tube OD for a proper fit.
