20HB-20MORB STRAIGHT

Description & Features

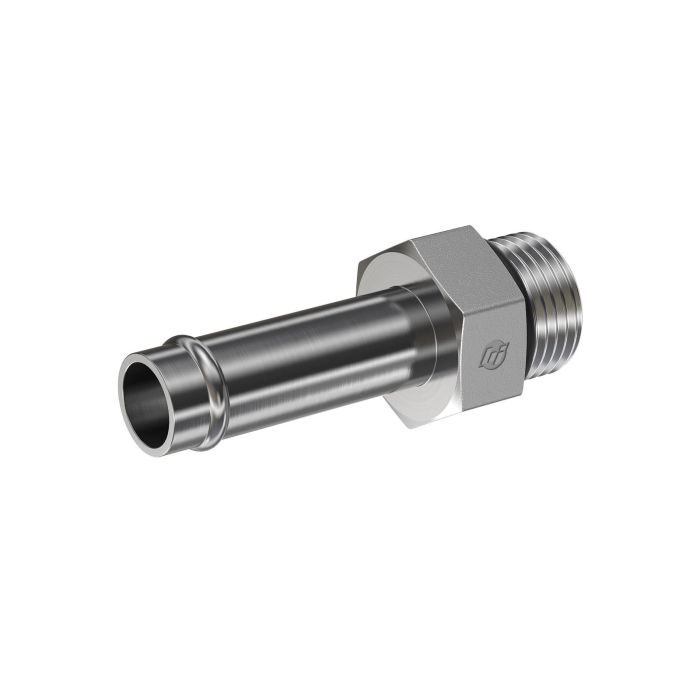

This straight steel fitting, designated as 20HB-20MORB STRAIGHT, features a hose barb connection on one end and a Male SAE O-Ring Boss (MORB) on the other, conforming to SAE J514 standards. The hose barb end accommodates a 1-1/4" tube OD, while the MORB end features a 1-5/8-12 thread size.

The fitting utilizes an NBR O-ring seal to ensure a secure, leak-proof connection. With an overall length of 1.500 inches (38.1 mm), this fitting provides a reliable connection in hydraulic applications. Note for California residents: this product carries a PROP-65 warning.

SKU: 4604-20-20-O

Supplier Part Number (MPN): 4604-20-20-O

Alternate Part Numbers: 4604-20-20

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Barbed, Male SAE ORB
Connection Type 1
Hose Barbed
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1926, SAE J1231-2, SAE J514
Dimensions
2.7 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-7/8 in
l2 Dimensions
1.218 in
l Dimensions
1-1/2 in
Material
Steel
Material Construction
12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
4604-O Series
Thread 2 Drill Dimensions
1.078 in
Thread B1 Drill Dimensions
1.094 in
Thread Size
1-5/8-12
Tube Outside Diameter
1-1/4 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
05HB-04MORB STRAIGHT

4604-05-04-O

5/16 in

1/4 in

7/16-20

4604-05-05-O

4604-05-05-O

5/16 in

5/16 in

1/2-20

.

4604-06-04-O

3/8 in

1/4 in

7/16-20

06HB-06MORB STRAIGHT

4604-06-06-O

3/8 in

3/8 in

9/16-18

06HB-08MORB Straight

4604-06-08-O

3/8 in

1/2 in

3/4-16

08HB-08MORB STRAIGHT

4604-08-08-O

1/2 in

1/2 in

3/4-16

10HB-08MORB STRAIGHT

4604-10-08-O

5/8 in

1/2 in

3/4-16

10HB-10MORB STRAIGHT

4604-10-10-O

5/8 in

5/8 in

7/8-14

BEADED HOSE STEM

4604-10-12-O

5/8 in

3/4 in

1-1/16-12

12HB-12MORB STRAIGHT

4604-12-12-O

3/4 in

3/4 in

1-1/16-12

STRAIGHT ADAPTER -3/4IN BARB X 1 IN MALE

4604-12-16-O

3/4 in

1 in

1-5/16-12

16HB-12MORB STRAIGHT

4604-16-12-O

1 in

3/4 in

1-1/16-12

16HB-20MORB Straight

4604-16-20-O

1 in

1-1/4 in

1-5/8-12

20HB-16MORB STRAIGHT

4604-20-16-O

1-1/4 in

1 in

1-5/16-12

20HB-24MORB STRAIGHT

4604-20-24-O

1-1/4 in

1-1/2 in

1-7/8-12

BEADED HOSE STEM

4604-24-16-O

1-1/2 in

1 in

1-5/16-12

HB-MORB Straight HB-24 / ORB-20

4604-24-20-O

1-1/2 in

1-1/4 in

1-5/8-12

BEADED HOSE STEM

4604-24-24-O

1-1/2 in

1-1/2 in

1-7/8-12

Product Questions & Answers (1)

Question by: Janet J on Nov 29, 2025, 6:20 AM
What size hose will this fitting connect to? I'm using 1-1/4" ID hose, just want to be sure.
Answer by: Customer Support on Nov 30, 2025, 3:18 PM
This straight fitting is designed to connect to a 1-1/4" OD (outer diameter) hose on one end. The other end is a Male SAE O-Ring Boss (MORB) connection.
