20HB-24MORB STRAIGHT

Description & Features

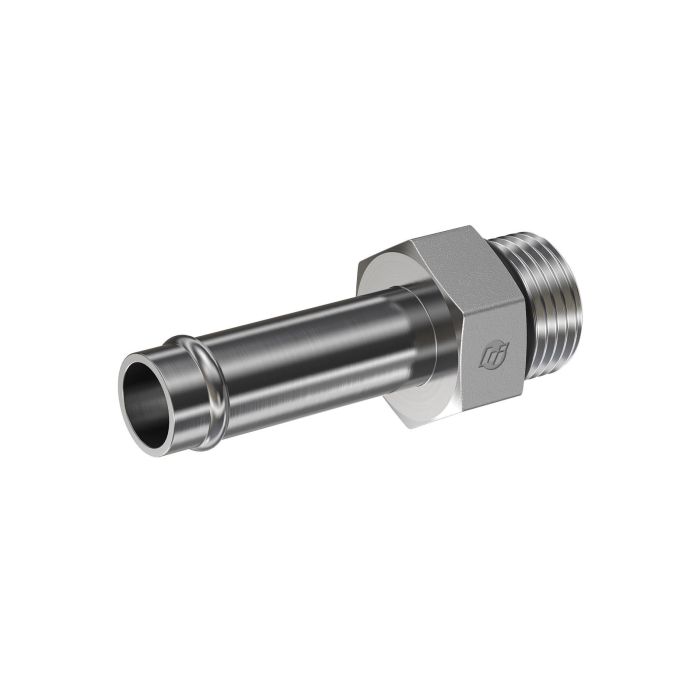

Designed for straight-configuration hose-to-port connections, the 20HB-24MORB Straight adapter from Brennan Industries connects a 1-1/4 inch OD hose barb end to a 1-7/8-12 Male SAE O-Ring Boss port conforming to SAE J514. Constructed from straight steel, the fitting uses an NBR O-ring seal at the ORB end, providing reliable fluid containment in hydraulic systems handling petroleum-based and water-based fluids.

With an overall length of 1.500 inches and a secondary overall length of 1.270 inches, this fitting is suited for compact installation environments where space constraints are a consideration. The hose barb end accepts a 1.094 inch drill diameter, while the ORB end accommodates a 1.312 inch drill diameter. It is a practical choice for hydraulic circuits requiring a direct, non-adjustable barb-to-ORB transition without additional fittings or adapters in the line.

SKU: 4604-20-24-O

Supplier Part Number (MPN): 4604-20-24-O

Alternate Part Numbers: D-4604-20-24

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1-1/2 in
Connection Type
Barbed, Male SAE ORB
Connection Type 1
Hose Barbed
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1926, SAE J1231-2, SAE J514
Dimensions
2.77 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
2-1/8 in
l2 Dimensions
1.27 in
l Dimensions
1-1/2 in
Material
Steel
Material Construction
12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
4604-O Series
Thread 2 Drill Dimensions
1.312 in
Thread B1 Drill Dimensions
1.094 in
Thread Size
1-7/8-12
Tube Outside Diameter
1-1/4 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
05HB-04MORB STRAIGHT

4604-05-04-O

5/16 in

1/4 in

7/16-20

4604-05-05-O

4604-05-05-O

5/16 in

5/16 in

1/2-20

.

4604-06-04-O

3/8 in

1/4 in

7/16-20

06HB-06MORB STRAIGHT

4604-06-06-O

3/8 in

3/8 in

9/16-18

06HB-08MORB Straight

4604-06-08-O

3/8 in

1/2 in

3/4-16

08HB-08MORB STRAIGHT

4604-08-08-O

1/2 in

1/2 in

3/4-16

10HB-08MORB STRAIGHT

4604-10-08-O

5/8 in

1/2 in

3/4-16

10HB-10MORB STRAIGHT

4604-10-10-O

5/8 in

5/8 in

7/8-14

BEADED HOSE STEM

4604-10-12-O

5/8 in

3/4 in

1-1/16-12

12HB-12MORB STRAIGHT

4604-12-12-O

3/4 in

3/4 in

1-1/16-12

STRAIGHT ADAPTER -3/4IN BARB X 1 IN MALE

4604-12-16-O

3/4 in

1 in

1-5/16-12

16HB-12MORB STRAIGHT

4604-16-12-O

1 in

3/4 in

1-1/16-12

16HB-20MORB Straight

4604-16-20-O

1 in

1-1/4 in

1-5/8-12

20HB-16MORB STRAIGHT

4604-20-16-O

1-1/4 in

1 in

1-5/16-12

20HB-20MORB STRAIGHT

4604-20-20-O

1-1/4 in

1-1/4 in

1-5/8-12

BEADED HOSE STEM

4604-24-16-O

1-1/2 in

1 in

1-5/16-12

HB-MORB Straight HB-24 / ORB-20

4604-24-20-O

1-1/2 in

1-1/4 in

1-5/8-12

BEADED HOSE STEM

4604-24-24-O

1-1/2 in

1-1/2 in

1-7/8-12

Product Questions & Answers (1)

Question by: Brent H on Dec 10, 2025, 4:10 PM
What size drill bit do I need for the hose barb end? My grandpa always told me to measure twice and cut once, so wanna be sure.
Answer by: Customer Support on Dec 12, 2025, 12:11 PM
For the hose barb end, you'll want a 1.094 inch drill diameter.
