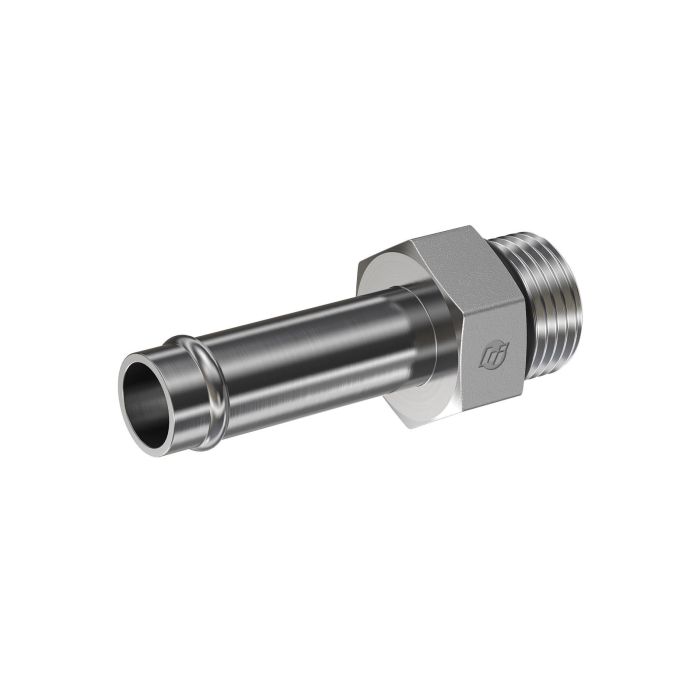

main product photo

BEADED HOSE STEM

Ask A Question

Description & Features

Constructed from durable straight steel, this beaded hose stem is an essential component for industrial hydraulic systems. Designed for compatibility with a 1-1/2 inch hose barb and a 1-7/8-12 male SAE O-ring boss connection, it ensures secure and reliable fluid transfer. Its precise engineering adheres to SAE J514 specifications, providing assurance of quality and performance in demanding environments.

With overall lengths of 1.278 mm and 1.500 mm, this fitting is crafted by World Wide Fittings and integrated into the Brennan 4604-O series. The NBR O-ring seal material offers robust resistance to various hydraulic fluids, enhancing the longevity of the component. Ideal for use in high-pressure applications, this beaded hose stem meets the rigorous demands of industrial settings.

SKU: 4604-24-24-O

Supplier Part Number (MPN): 4604-24-24-O

Alternate Part Numbers: 4604-24-24

Specifications

Brand
BRENNAN
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Barbed, Male SAE ORB
Connection Type 1
Hose Barbed
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1926, SAE J1231-2, SAE J514
Dimensions
2.77 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
2-1/8 in
l2 Dimensions
1.278 in
l Dimensions
1-1/2 in
Material
Steel
Material Construction
12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
4604-O Series
Thread 2 Drill Dimensions
1.312 in
Thread B1 Drill Dimensions
1.343 in
Thread Size
1-7/8-12
Tube Outside Diameter
1-1/2 in

Product Questions & Answers (2)

Question by: Jean J on Mar 24, 2026, 9:10 AM
got a 1-1/2 inch hose I'm trying to connect up to a male O-ring boss port, this the right fitting for that?
Answer by: Customer Support on Mar 25, 2026, 10:44 AM
That matchup is exactly what this stem handles. The barb end fits 1-1/2 inch hose ID, and the threaded end is a 1-7/8-12 male SAE O-ring boss. The O-ring seal is NBR, so it'll give you a solid, leak-resistant connection at that port. Just make sure your port matches the SAE J514 spec and you'll be in good shape.
Question by: Melvin W on Nov 30, 2025, 3:29 PM
Will this fitting work with a standard 1 7/8-12 SAE O-ring port?
Answer by: Customer Support on Dec 1, 2025, 5:22 PM
Yes, this beaded hose stem has a 1-7/8-12 Male SAE O-Ring Boss thread, conforming to SAE J514 specification.
