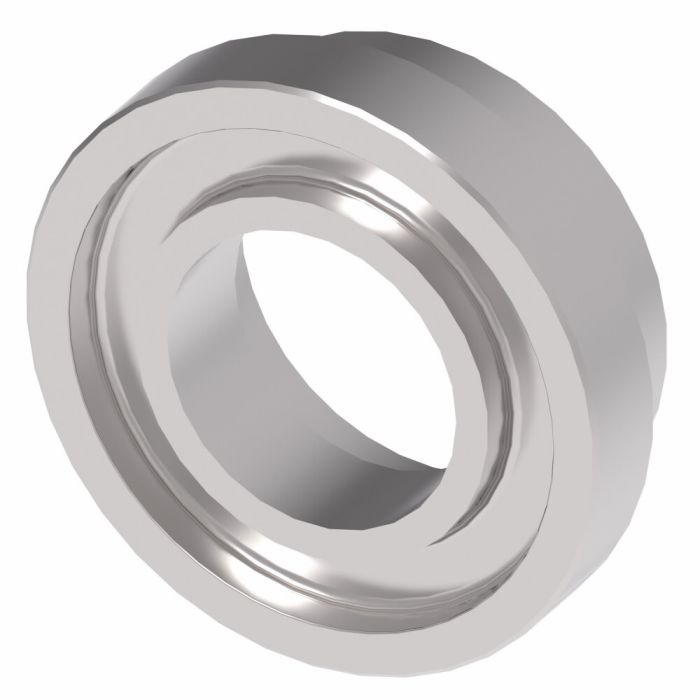

Aeroquip BRAZE WELD SPLIT FLG

Description & Features

Designed for braze or weld attachment, this split flange insert from Aeroquip provides a reliable method for connecting hydraulic lines using standard split flange configurations. The split flange design simplifies installation and removal in confined spaces where full rotation of a fitting is not practical.

The Aeroquip Braze Weld Split Flg is classified as a fluid connector kit insert, making it a fit-for-purpose component in hydraulic circuit assembly. With a product width of 2.38 inches, it is sized for larger-diameter hydraulic connections. Compatibility with braze and weld attachment methods gives system builders flexibility in how the fitting is permanently joined to tubing or ported components.

SKU: 4624-24S

Supplier Part Number (MPN): 4624-24S

Alternate Part Numbers: 4624-24S FOR KEJR

Specifications

Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Female Braze, Flanged	Connection Type 1 SAE Code 61 Flange	Connection Type 2 Female Braze	Dimension Standards SAE J518	Finish Dura-Kote™	Fitting Type Shoulder	Material Steel	Material Construction Carbon Steel	Series 4624 Series

Product Questions & Answers (1)

Question by: Todd H on Oct 19, 2025, 9:23 PM

So, this thing gets brazed or welded onto something, right? What exactly is it used for once it's attached?

Answer by: Customer Support on Oct 21, 2025, 2:21 PM

This split flange insert provides a reliable connection point for hydraulic lines, especially where you can't easily rotate a full fitting. It lets you hook up hydraulic lines using a standard split flange setup.
