Aeroquip Reuse FIT 5 JIC SWIV

Description & Features

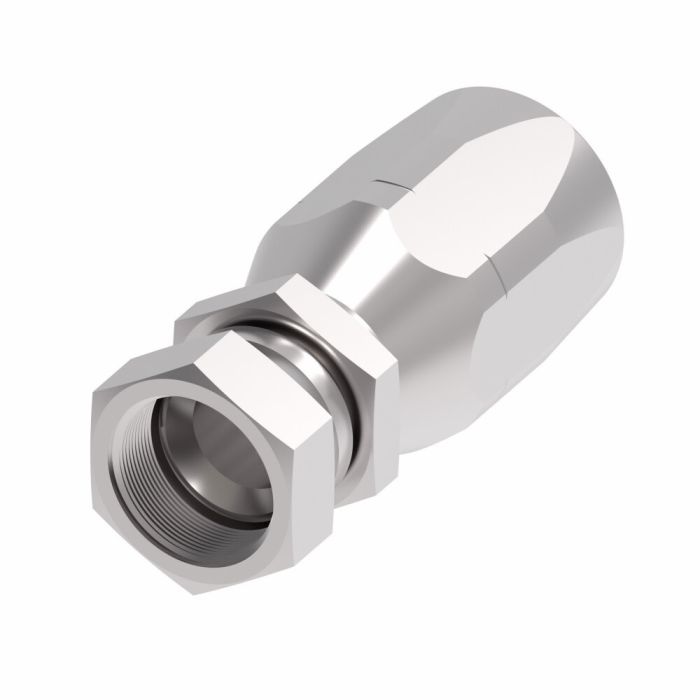

This Aeroquip Reuse FIT 5 JIC SWIV fitting assembly features a female SAE 37° end connection. Constructed from carbon steel, this fitting is suitable for a wide range of applications where durable and dependable connections are required.

Designed for use with -4 hose dash size, this Aeroquip fitting helps to cut assembly times and boost production. It offers a Line/Hose/Tube end type 2 connection, with a hex size 2 of 0.81.

SKU: 4721-5-4S

Supplier Part Number (MPN): 4721-5-4S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.72 in	Compatible Hose ID 0.251 in	Connection Size 1 5/16 in	Connection Size 2 1/4 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Reusable	Cut-Off Factor 2.05 in	Dimension Standards SAE J514	Dimensions 2.72 in L x 0.81 in W x 0.94 in H	End Gender 1 Female	End Size 1 05	Finish Dura-Kote™	Fitting Type Reusable Fitting	For Use With 2766, 2781 and FC195 Series Hoses	Hex Size 5/8 in	Hose Dash Size 04	Inside Diameter 0.17 in	Material Steel	Material Construction Carbon Steel	Reusable Socket Hex Size 20.637 mm	Series 4721 Series	Thread Sealant Without Thread Sealant	Thread Size 1/2-20	Thread Type UNF

Product Questions & Answers (1)

Question by: Wade T on May 21, 2025, 4:37 PM

So this fitting is carbon steel, right? How durable is that, exactly?

Answer by: Customer Support on May 23, 2025, 8:05 AM

Carbon steel provides good strength and durability for a wide range of hydraulic applications. It’s a dependable material where you need a solid connection.
