Aeroquip Reuse FIT 8 JIC SWIV

Description & Features

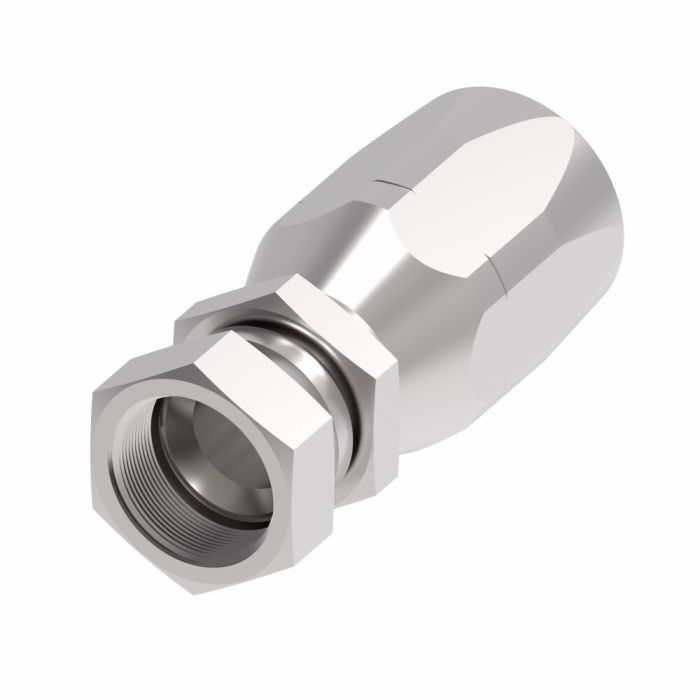

Designed for SAE 37° JIC swivel connections, the Aeroquip Reuse Fit 8 JIC Swiv is a reusable hose fitting from Danfoss Power Solutions' Aeroquip 4721 Series. Constructed from carbon steel, it is built to handle demanding hydraulic service where reliability and durability are essential across a wide range of industrial applications.

The female SAE 37° swivel end (size 0.75") mates with a -6 hose dash size, making it well-suited for medium-pressure hydraulic lines where reusability helps reduce replacement costs and downtime. A 0.88" hex on the hose end supports straightforward assembly, and the reusable design is intended to cut assembly times and support higher production throughput in hydraulic line fabrication.

SKU: 4721-8-6S

Supplier Part Number (MPN): 4721-8-6S

Alternate Part Numbers: C1BQ80

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.11 in	Compatible Hose ID 0.38 in	Connection Size 1 1/2 in	Connection Size 2 3/8 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Reusable	Cut-Off Factor 2.2 in	Dimension Standards SAE J514	Dimensions 3.11 in L x 1 in W x 1 in H	End Gender 1 Female	End Size 1 3/4 in	Finish Dura-Kote™	Fitting Type Reusable Fitting	For Use With 2766, 2781 and FC195 Series Hoses	Hex Size 7/8 in	Hose Dash Size 06	Inside Diameter 0.31 in	Material Steel	Material Construction Carbon Steel	Reusable Socket Hex Size 25.4 mm	Series 4721 Series	Thread Sealant Without Thread Sealant	Thread Size 3/4-16	Thread Type UNF

Product Questions & Answers (1)

Question by: Billy G on Apr 18, 2025, 2:21 PM

Will this fitting work for standard hydraulic applications?

Answer by: Customer Support on Apr 19, 2025, 8:10 PM

This Aeroquip fitting is definitely suited for a wide range of hydraulic applications where you need a reliable connection.
