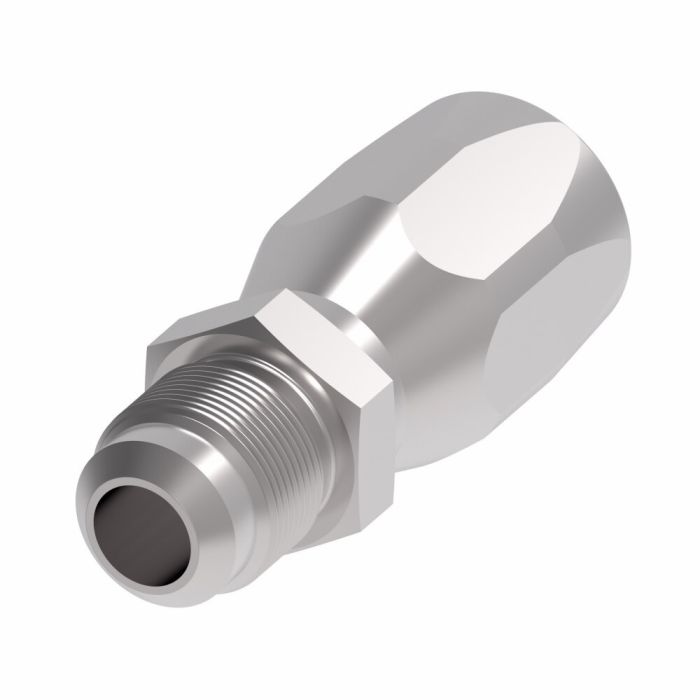

Aeroquip Reuse FIT 16 Male JUC

Description & Features

Engineered for versatility and reliability, the Aeroquip Reuse FIT 16 Male JUC fitting is an essential component in various hydraulic systems. Designed with a SAE 37° male flare connection, it offers seamless integration with hoses, tubes, and lines. Crafted from robust carbon steel, this fitting ensures durability and long-lasting performance in demanding industrial environments.

This Aeroquip fitting by Danfoss Power Solutions excels in optimizing assembly time, thereby enhancing production efficiency. With a hose dash size of -16 and a hex size of 1.75 inches, it provides a precise fit that reduces the chance of leaks and system failures. Its lightweight design, at just 0.79 lbs, makes installation and handling straightforward without compromising on strength.

SKU: 4725-16S

Supplier Part Number (MPN): 4725-16S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 4.38 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Hose, Male JIC	Connection Type 1 Hose	Connection Type 2 Male SAE 37 deg JIC Flare	Construction Style Reusable	Cut-Off Factor 2.33 in	Dimension Standards SAE J514	Dimensions 0.82 in ID x 4.38 in L	End Connection Torque 108 to 113 lb-ft	End Gender 1 Male	End Size 1 16	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With Model 2766, 27811 and FC195 Hoses	Hex Size 1-1/2 x 1-3/4 in	Hose Dash Size 16	Inside Diameter 0.82 in	Material Steel	Material Construction Carbon Steel	Series 4725 Series	Thread Sealant Without Thread Sealant	Thread Size 1-5/16-12

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Type 2	Hose Dash Size
4725-4-4S	1/4 in	1/4 in	Male SAE 37 deg JIC Flare	04
4725-6-4S	3/8 in	1/4 in	Male SAE 37 deg JIC Flare	04
4725-6-6S	3/8 in	3/8 in	Male SAE 37 deg JIC Flare	06
4725-8-6S	1/2 in	3/8 in	Male SAE 37 deg JIC Flare	06
4725-8-8S	1/2 in	1/2 in	Male SAE 37 deg JIC Flare	08
4725-10-8S	5/8 in	1/2 in	Hose	10
4725-10S	5/8 in	5/8 in	Male SAE 37 deg JIC Flare	10
4725-12-8S	3/4 in	1/2 in	Hose	12
4725-12-10S	3/4 in	5/8 in	Hose	10
4725-12S	3/4 in	3/4 in	Male SAE 37 deg JIC Flare	12
4725-16-12S	1 in	3/4 in	Hose	16
4725-20S	1-1/4 in	1-1/4 in	Hose	12
