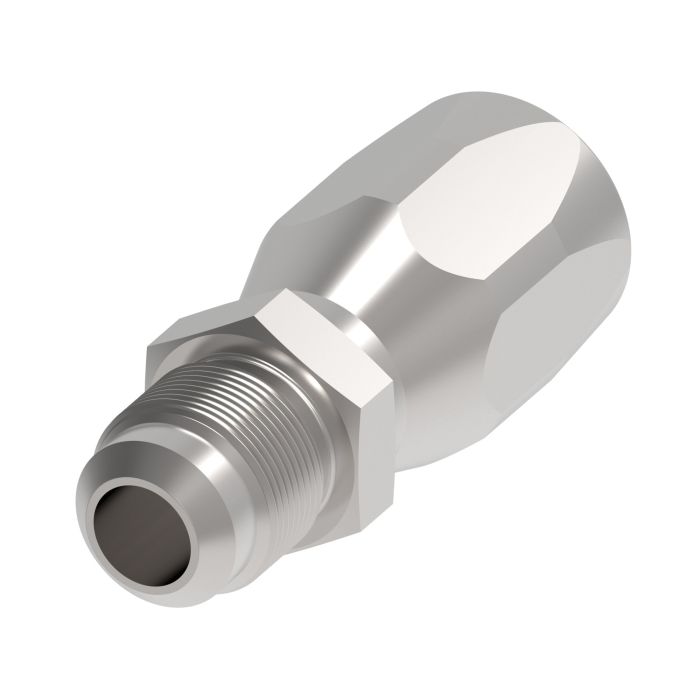

Aeroquip Reuse FIT 6 Male JIC

Description & Features

Designed for use with -4 dash size hose, this carbon steel male JIC fitting features a 9/16-inch end connection with an SAE 37° flare angle, a widely used standard in hydraulic line assemblies. The Aeroquip Reuse Fit 6 Male JIC belongs to the Aeroquip 4725 Series from Danfoss Power Solutions, a line built around reusable construction that supports faster assembly and reduced downtime in high-volume or field service environments.

With a hex size of 0.81 inches, the fitting is compatible with standard tooling and suited to a broad range of hydraulic hose connection applications. Carbon steel construction provides reliable mechanical strength for demanding industrial use. As a reusable fitting assembly, it can be disassembled and refitted without replacing the component, which helps reduce material waste and cut turnaround time on hose assemblies.

SKU: 4725-6-4S

Supplier Part Number (MPN): 4725-6-4S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.55 in	Compatible Hose ID 1/4 in	Connection Size 1 3/8 in	Connection Size 2 1/4 in	Connection Type Hose, Male JIC	Connection Type 1 Hose	Connection Type 2 Male SAE 37 deg JIC Flare	Construction Style Reusable	Cut-Off Factor 1.33 in	Dimension Standards SAE J514	Dimensions 0.17 in ID x 2.55 in L	End Connection Torque 18 to 20 lb-ft	End Gender 1 Male	End Size 1 9/16 in	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With Model 2766, 27811 and FC195 Hoses	Hex Size 0.812 x 0.688 in	Hose Dash Size 04	Inside Diameter 0.17 in	Material Steel	Material Construction Carbon Steel	Series 4725 Series	Thread Sealant Without Thread Sealant	Thread Size 9/16-18	Thread Type UNF

Product Questions & Answers (1)

Question by: Curt G on Apr 11, 2025, 8:40 PM

Can this JIC fitting be taken apart and put back together without ruining it?

Answer by: Customer Support on Apr 13, 2025, 2:26 PM

This fitting is designed for reuse, meaning you can disassemble and refit it without needing to replace the entire component. It's a big help for reducing waste and speeding up hose assembly work.
