Aeroquip SocketLESS FIT 1IN MP

Description & Features

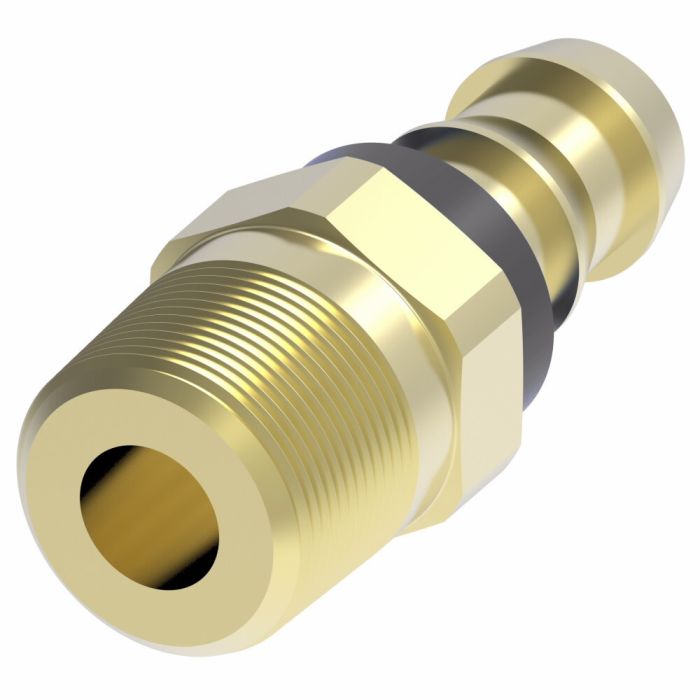

Constructed from brass, this 1-inch male NPTF fitting is designed for use with the Aeroquip SocketLESS FIT 1IN MP reusable hose fitting system, part of Aeroquip's 4738 Series. The socketless design eliminates the need for a socket during assembly, which reduces cut assembly times and supports higher production throughput in hydraulic hose fabrication environments.

With a -16 hose dash size and a 1.38-inch width, this fitting is well-suited for a wide range of hydraulic hose assembly applications. The brass construction provides reliable durability across typical hydraulic service conditions. As a reusable fitting assembly, it offers practical value in use requiring frequent hose changes or field repairs.

SKU: 4738-16-16B

Supplier Part Number (MPN): 4738-16-16B

Specifications

a Dimensions 3.08 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Hose, MNPT	Connection Type 1 Hose	Connection Type 2 Male NPTF	Construction Style Reusable	Cut-Off Factor 1.91 in	Dimensions 3.08 in L x 1.38 in W x 1.5 in H	End Gender 1 Male	End Size 1 1 in	Fitting Type Hose Fitting	For Use With 2556, 2565, 2575, FC332, FC647 and H201 Series Hoses	Hex Size 1-3/8 in	Hose Dash Size 16	Inside Diameter 0.85 in	Material Brass	Material Construction Brass	Operating Temperature -40	Series 4738 Series	Thread Sealant Without Thread Sealant	Thread Size 1-11-1/2

Product Questions & Answers (1)

Question by: Howard T on Apr 5, 2026, 8:42 PM

Will this fitting work with any kind of hydraulic hose or does it need to be one of them fancy "socketless" kinds?

Answer by: Customer Support on Apr 7, 2026, 3:53 PM

This fitting is specifically designed for use with Aeroquip's SocketLESS hose system, part of their 4738 Series. It won't work properly with standard hydraulic hose that requires a socket.
