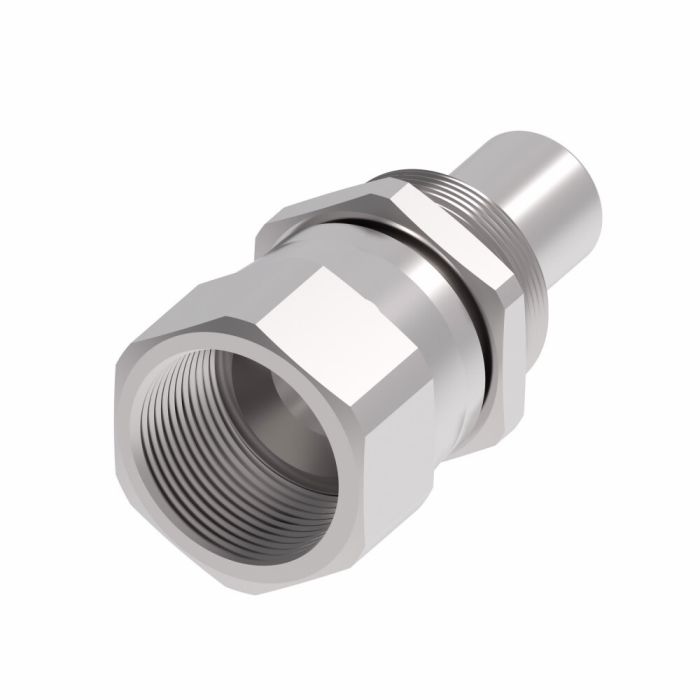

Aeroquip Reusable FTGS - Code

Description & Features

This Aeroquip reusable fitting is designed for maximum durability in demanding conditions. This nipple assembly features a female UNF end and a male UNEF end.

The Aeroquip Reusable FTGS - Code offers innovative designs to ensure safety and reliability across a wide range of configurations. Constructed from stainless steel, this fitting offers a 1.25-inch hex size.

SKU: 473A-12C

Supplier Part Number (MPN): 473A-12C

Specifications

a Dimensions 2.22 in	Compatible Hose ID 3/4 in	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Reusable	Cut-Off Factor 0.7 in	Dimension Standards SAE J514	Dimensions 2.22 in L x 1.25 in W x 1.4 in H	End Gender 1 Female	End Gender 2 Male	End Size 1 12	End Size 2 1 in	Finish Passivated	Fitting Type Hose Fitting	For Use With Model 2807 3/4 in ID Hoses	Hex Size 1-1/4	Hose Dash Size 12	Inside Diameter 0.59 in	Material Stainless Steel	Material Construction 316 Stainless Steel	Series 473A Series	Thread Sealant Without Thread Sealant	Thread Size 1-1/16-12	Thread Type UN

Product Questions & Answers (1)

Question by: Lynn S on Mar 11, 2026, 6:53 PM

So this fitting has a UNF end and a UNEF end... what does that even mean?

Answer by: Customer Support on Mar 13, 2026, 7:18 AM

UNF stands for Unified National Fine thread, while UNEF stands for Unified National Extra Fine thread. The fitting uses these thread types on its female and male ends respectively.
