Aeroquip Reusable FTGS - Code

Description & Features

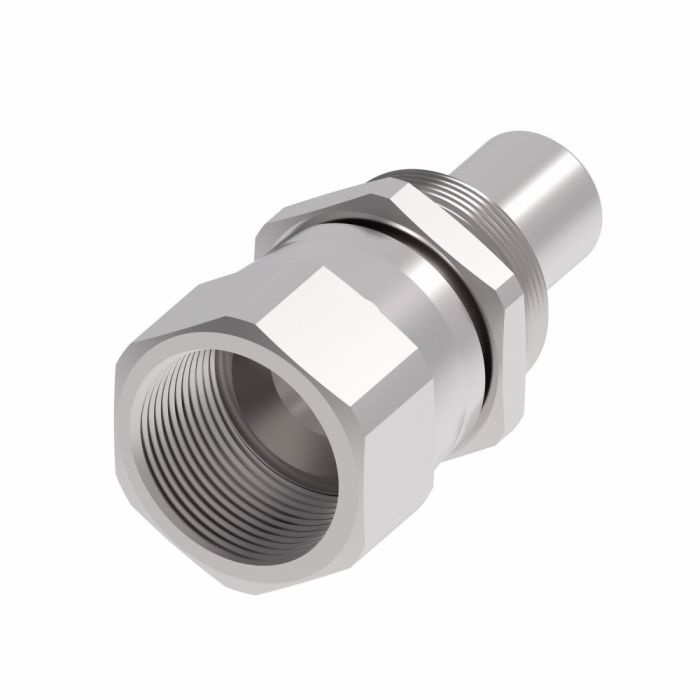

Constructed from stainless steel, this -16 dash size nipple assembly is built for demanding marine and military hydraulic applications where corrosion resistance and connection integrity are critical. The female UNF end pairs with a male UNEF end, offering a reliable dual-thread configuration suited to high-stress hose assemblies. A hex size of 1.5 supports secure wrench engagement during installation and maintenance.

The Aeroquip Reusable FTGS - Code fitting is part of Aeroquip's 473A Series, designed across a wide range of styles and configurations to accommodate varied system requirements. Reusable construction reduces replacement costs in field-service environments, while the stainless steel body supports long service life under harsh operating conditions common to marine and military hydraulic circuits.

SKU: 473A-16C

Supplier Part Number (MPN): 473A-16C

Specifications

a Dimensions 2.39 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Reusable	Cut-Off Factor 1.23 in	Dimension Standards SAE J514	Dimensions 2.39 in L x 1.5 in W x 1.67 in H	End Gender 1 Female	End Gender 2 Male	End Size 1 16	End Size 2 20	Finish Passivated	Fitting Type Hose Fitting	For Use With Model 2807 1 in ID Hoses	Hex Size 1-1/2 in	Hose Dash Size 16	Inside Diameter 0.83 in	Material Stainless Steel	Material Construction 316 Stainless Steel	Series 473A Series	Thread Sealant Without Thread Sealant	Thread Size 1-5/16-12	Thread Type UN

Product Questions & Answers (1)

Question by: Janet W on Jan 21, 2026, 6:45 AM

Will this fitting hold up if it's constantly exposed to saltwater?

Answer by: Customer Support on Jan 23, 2026, 6:56 AM

Constructed from stainless steel, this fitting is designed for marine applications where corrosion resistance is a must. It should hold up well in a saltwater environment.
