Aeroquip Reusable FTGS - Code

Description & Features

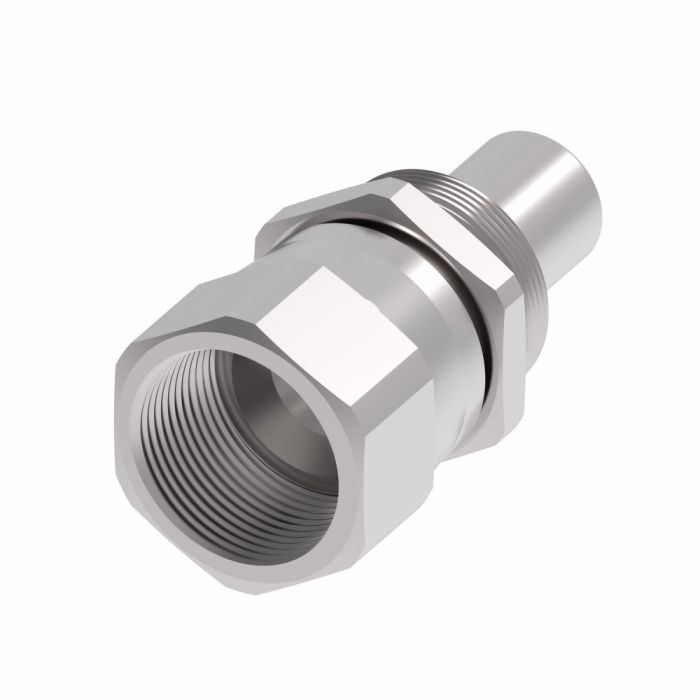

This Aeroquip Reusable FTGS is a stainless steel nipple assembly designed for maximum durability in demanding settings. Its innovative design ensures safety and reliability across a wide range of configurations.

Featuring a female UNF end and a male UNEF end, both with a size of 0.5 inch (0.5625 inch for the male end), this Aeroquip fitting is suitable for various applications. The hex size of the male end measures 0.63 inch, and it is designed for a hose dash size of -5.

SKU: 473A-5C

Supplier Part Number (MPN): 473A-5C

Specifications

a Dimensions 1.58 in	Compatible Hose ID 0.31 in	Connection Size 1 5/16 in	Connection Size 2 5/16 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Crimp	Cut-Off Factor 0.94 in	Dimension Standards SAE J514	Dimensions 0.23 in ID	End Connection Torque 14 to 15 lb-ft	End Gender 1 Female	End Gender 2 Male	End Size 1 1/2 in	End Size 2 9/16 in	Finish Passivated	Fitting Type Hose Fitting	For Use With Model 2807 0.31 in ID Hoses	Hex Size 0.63 in	Hose Dash Size 05	Inside Diameter 0.23 in	Material Stainless Steel	Material Construction 316 Stainless Steel	Series 473A Series	Thread Sealant Without Thread Sealant	Thread Size 1/2-20	Thread Type UNF

Product Questions & Answers (1)

Question by: Ricky M on Apr 9, 2025, 8:06 PM

I'm swapping out some fittings on an older piece of equipment. Is this compatible with standard hydraulic hoses?

Answer by: Customer Support on Apr 10, 2025, 9:01 PM

It's designed for a hose dash size of -5, so as long as your hose matches that spec, you should be good to go.
