Aeroquip Reusable FTGS - Code

Description & Features

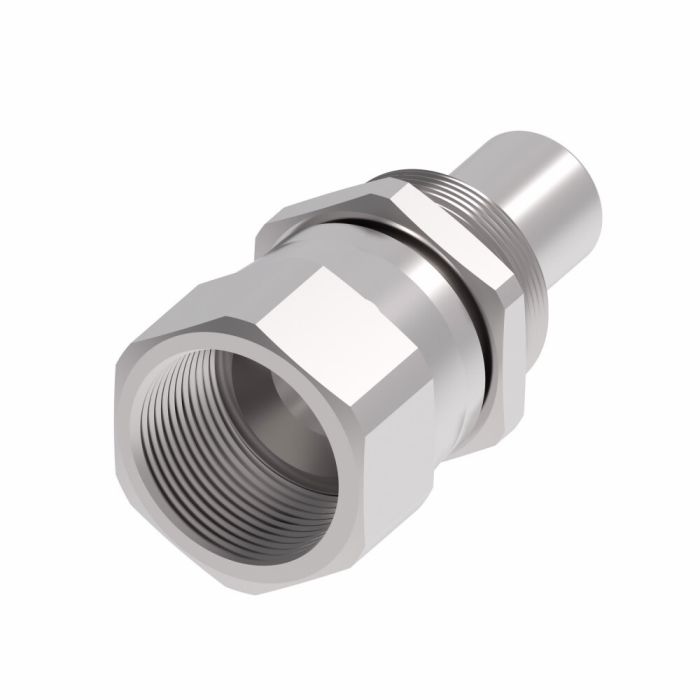

This Aeroquip Reusable FTGS - Code nipple assembly offers maximum durability for reliable performance in harsh conditions. Its innovative design ensures a secure connection in a wide range of applications.

Constructed from stainless steel, this Aeroquip fitting features a female UNF end and a male UNEF end, both with a 0.75" size and a -8 hose dash size. The hex size 2 is 0.88".

SKU: 473A-8C

Supplier Part Number (MPN): 473A-8C

Specifications

a Dimensions 1.88 in	Compatible Hose ID 1/2 in	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Reusable	Cut-Off Factor 0.8 in	Dimension Standards SAE J514	Dimensions 1.88 in L x 0.88 in W x 0.97 in H	End Gender 1 Female	End Gender 2 Male	End Size 1 3/4 in	End Size 2 3/4 in	Finish Passivated	Fitting Type Hose Fitting	For Use With Model 2807 1/2 in ID Hoses	Hex Size 7/8 in	Hose Dash Size 08	Inside Diameter 0.38 in	Material Stainless Steel	Material Construction 316 Stainless Steel	Series 473A Series	Thread Sealant Without Thread Sealant	Thread Size 3/4-16	Thread Type UNF

Product Questions & Answers (1)

Question by: Ricky J on Jul 8, 2025, 11:23 AM

What kinda operating conditions will this hold up to?

Answer by: Customer Support on Jul 9, 2025, 7:24 PM

Featuring maximum durability, this Aeroquip FTGS assembly is designed to perform reliably even when things get harsh.
