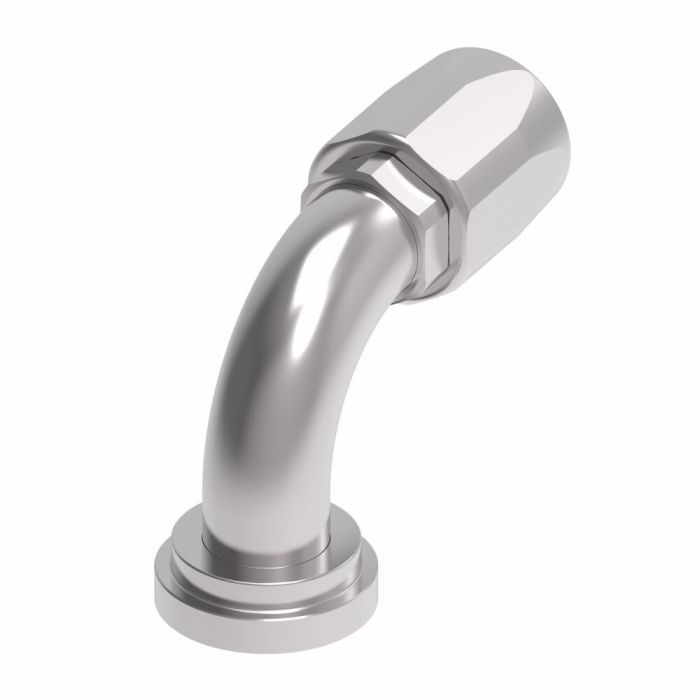

main product photo

Aeroquip Reusable FTGS - Code

Ask A Question

Description & Features

A SAE Code 61 90-degree elbow configuration, this carbon steel fitting from the Aeroquip 4779 Series is designed for reusable assembly with a flanged end on one side and a hose connection on the other. With a hose dash size of -10 and a drop dimension of 2.500 inches, it suits hydraulic line routing where a right-angle transition between a flange port and hose end is required.

The Aeroquip Reusable Ftgs - Code 61 fitting is built for repeated assembly and disassembly, helping reduce downtime during maintenance and supporting faster installation in production environments. Carbon steel construction provides the durability expected in demanding hydraulic applications. The reusable design is well suited for use across a wide range of industrial hydraulic systems where SAE Code 61 flange connections are specified.

SKU: 4779-20-24S

Supplier Part Number (MPN): 4779-20-24S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
4.11 in
Compatible Hose ID
0.63 in
Compatible Tube OD
0.63 in
Connection Size 1
1-1/2 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, Hose
Connection Type 1
Hose
Connection Type 2
SAE Code 61 Split Flanged
Construction Style
Reusable
Cut-Off Factor
2.66 in
Drop Dimensions
3 in
End Connection Torque
50 to 60 lb-ft
End Size 1
20
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
1503, 2580, 2651, 302A, 303, FC234, FC300, FC321, FC350 and FC355 Series Hoses
Hex Size
1.94 x 1.75 in
Hose Dash Size
10
Inside Diameter
1.05 in
Material
Steel
Material Construction
Carbon Steel
Series
4779 Series
Thread Sealant
Without Thread Sealant
Tube Outside Diameter 1
0.63 in

Product Questions & Answers (1)

Question by: Jerry R on Oct 12, 2025, 4:30 PM
Will this fitting work with a standard SAE Code 61 flange? Just wanna make sure before I order.
Answer by: Customer Support on Oct 13, 2025, 5:41 PM
This Aeroquip fitting is indeed designed for use with SAE Code 61 flanged connections. It's built to provide a secure and reliable connection in hydraulic systems using that flange standard.
