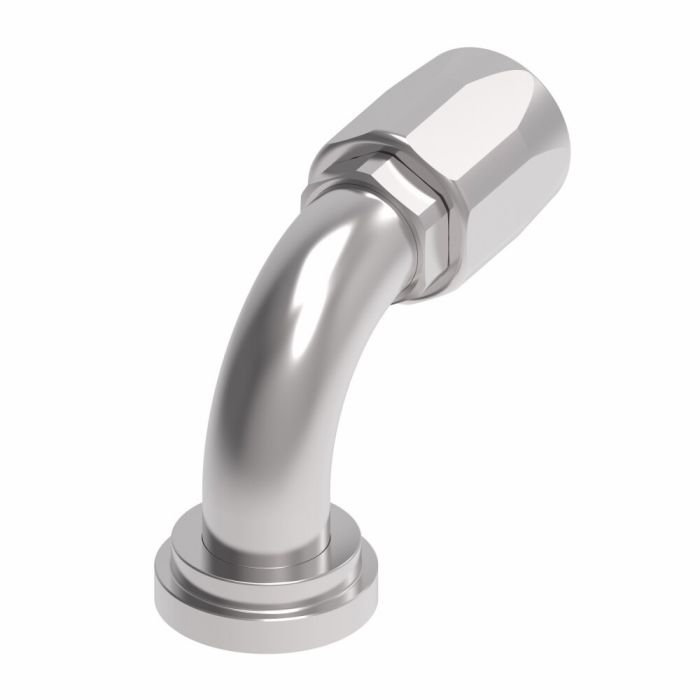

AEROQUIP FITTING

Description & Features

Designed for efficiency and durability, this Aeroquip Fitting is an ideal choice for a wide range of industrial applications. Featuring a robust construction from carbon steel, it ensures reliable performance and longevity. The fitting is engineered with a 90˚ elbow and SAE Code 61 standards, making it suitable for high-pressure environments. Its flanged connection on one end and compatibility with line, hose, or tube on the other end provide versatility and ease of installation.

The Aeroquip Fitting has a hose dash size of -20 and a drop dimension of 2.5000, ensuring a secure fit. The hex size of 1.75 adds to its user-friendly design, facilitating quicker assembly and boosting production efficiency. With a package weight of 0.79 lb, it is lightweight yet strong, promising dependable service across various industrial settings.

SKU: 4779-24-20S

Supplier Part Number (MPN): 4779-24-20S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 4.02 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Split Flanged	Construction Style Reusable	Cut-Off Factor 2.65 in	Drop Dimensions 3 in	End Connection Torque 96 to 111 lb-ft	End Size 1 24	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With 1503, 2580, 2651, 302A, 303, FC234, FC300, FC321, FC350 and FC355 Series Hoses	Hex Size 1-3/4 in	Hose Dash Size 20	Inside Diameter 1.01 in	Material Steel	Material Construction Carbon Steel	Series 4779 Series	Thread Sealant Without Thread Sealant

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Type 2	Hose Dash Size
4779-8S	1/2 in	1/2 in	Female Code 61 Split Flanged	08
4779-12S	3/4 in	3/4 in	Female Code 61 Split Flanged	12
4779-16-12S	3/4 in	1 in	SAE Code 61 Split Flanged	12
4779-16S	1 in	1 in	SAE Code 61 Split Flanged	16
4779-20-16S	1 in	1-1/4 in	SAE Code 61 Split Flanged	16
4779-20-24S	1-1/2 in	1-1/4 in	SAE Code 61 Split Flanged	10
4779-20S	1-1/4 in	1-1/4 in	SAE Code 61 Split Flanged	20
4779-24-32S	2 in	1-1/2 in	SAE Code 61 Split Flanged	32
4779-24S	1-1/2 in	1-1/2 in	SAE Code 61 Split Flanged	24
4779-32-24S	2 in	1-1/2 in	Female Code 61 Split Flanged	24
4779-32S	2 in	2 in	SAE Code 61 Split Flanged	32
4779-40-32S	2-1/2 in	2 in	Female Code 61 Split Flanged	32
