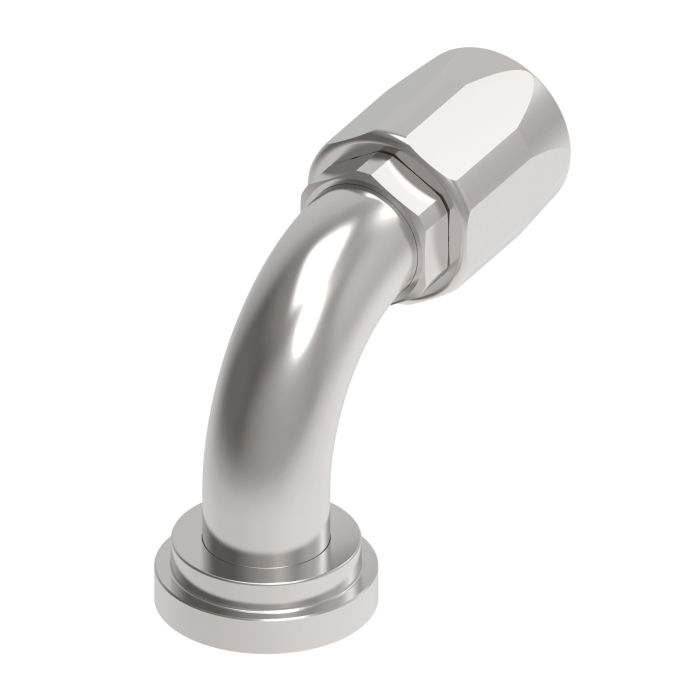

Aeroquip Fitting REUS 61-Flange

Description & Features

A carbon steel SAE Code 61 flange fitting in a 90° elbow configuration, the Aeroquip Fitting REUS 61-Flange is part of Aeroquip's 4779 Series reusable hose fitting line. One end is flanged; the other connects to line, hose, or tube, making it suited for high-pressure hydraulic circuit assemblies where Code 61 flange connections are specified.

Built for reusability, this fitting is designed to reduce assembly time and hold up under demanding hydraulic service. The -32 hose dash size and 2.75-inch drop dimension support larger-bore applications. At 2.26 lb, the assembly is a solid, dependable component for industrial hydraulic systems requiring SAE flange terminations.

SKU: 4779-24-32S

Supplier Part Number (MPN): 4779-24-32S

Specifications

a Dimensions 4.83 in	Compatible Hose ID 2 in	Compatible Tube OD 2.38 in	Connection Size 1 2 in	Connection Size 2 1-1/2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Split Flanged	Construction Style Reusable	Cut-Off Factor 2.98 in	Drop Dimensions 3 in	End Connection Torque 96 to 111 lb-ft	End Size 1 32	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With 1503, 2580, 2651, 302A, 303, FC234, FC300, FC321, FC350 and FC355 Series Hoses	Hex Size 2-1/4 x 2-1/2 in	Hose Dash Size 32	Inside Diameter 1.37 in	Material Steel	Material Construction Carbon Steel	Series 4779 Series	Thread Sealant Without Thread Sealant	Tube Outside Diameter 1 2.38 in

Product Questions & Answers (1)

Question by: Todd G on Dec 28, 2025, 10:44 AM

Can this fitting handle high-pressure hydraulic stuff, or am I gonna blow a seal?

Answer by: Customer Support on Dec 30, 2025, 6:46 AM

This fitting is indeed suited for high-pressure hydraulic circuit assemblies, especially where SAE Code 61 flange connections are used.
