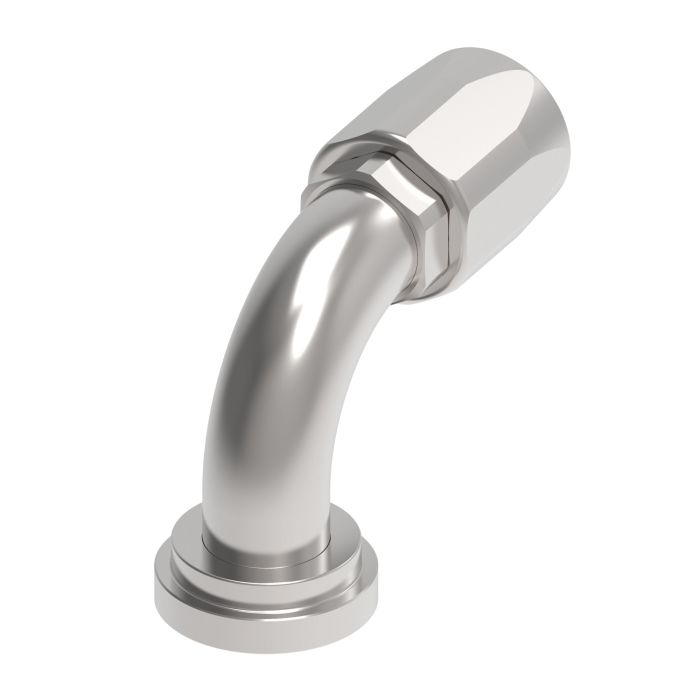

Aeroquip Fitting REUS 61-Flange

Description & Features

Designed for durability and reliability, the Aeroquip Fitting REUS 61-Flange is an essential component for industrial hydraulic systems. Constructed from high-quality carbon steel, this fitting ensures a robust connection with its flanged end type, perfectly suited for hoses, lines, and tubes. Featuring a drop dimension of 2.7500, it effectively reduces assembly time and boosts production efficiency, making it ideal for a wide range of demanding applications.

This fitting is part of the renowned Aeroquip brand, known for its superior engineering and dependable performance. The hose dash size of -24 facilitates compatibility with various industrial setups, while the fitting's manageable package weight of 0.79 lb contributes to ease of handling and installation. Trust in the Aeroquip Fitting REUS 61-Flange for your hydraulic needs, where performance and precision are critical.

SKU: 4779-32-24S

Supplier Part Number (MPN): 4779-32-24S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 4.42 in	Compatible Hose ID 1-1/2 in	Compatible Tube OD 2.81 in	Connection Size 1 2 in	Connection Size 2 1-1/2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 Female Code 61 Split Flanged	Construction Style Reusable	Cut-Off Factor 2.97 in	Dimensions 1.26 in ID	Drop Dimensions 3 in	End Connection Torque 96 to 111 lb-ft	End Size 1 32	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With Model 302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Hoses	Hex Size 1.94 x 1.75 in	Hose Dash Size 24	Inside Diameter 1.26 in	Material Steel	Material Construction Carbon Steel	Series 4779 Series	Thread Sealant Without Thread Sealant	Tube Outside Diameter 1 2.81 in

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Type 2	Hose Dash Size
4779-8S	1/2 in	1/2 in	Female Code 61 Split Flanged	08
4779-12S	3/4 in	3/4 in	Female Code 61 Split Flanged	12
4779-16-12S	3/4 in	1 in	SAE Code 61 Split Flanged	12
4779-16S	1 in	1 in	SAE Code 61 Split Flanged	16
4779-20-16S	1 in	1-1/4 in	SAE Code 61 Split Flanged	16
4779-20-24S	1-1/2 in	1-1/4 in	SAE Code 61 Split Flanged	10
4779-20S	1-1/4 in	1-1/4 in	SAE Code 61 Split Flanged	20
4779-24-20S	1-1/4 in	1-1/2 in	SAE Code 61 Split Flanged	20
4779-24-32S	2 in	1-1/2 in	SAE Code 61 Split Flanged	32
4779-24S	1-1/2 in	1-1/2 in	SAE Code 61 Split Flanged	24
4779-32S	2 in	2 in	SAE Code 61 Split Flanged	32
4779-40-32S	2-1/2 in	2 in	Female Code 61 Split Flanged	32
