AEROQUIP FITTING

Description & Features

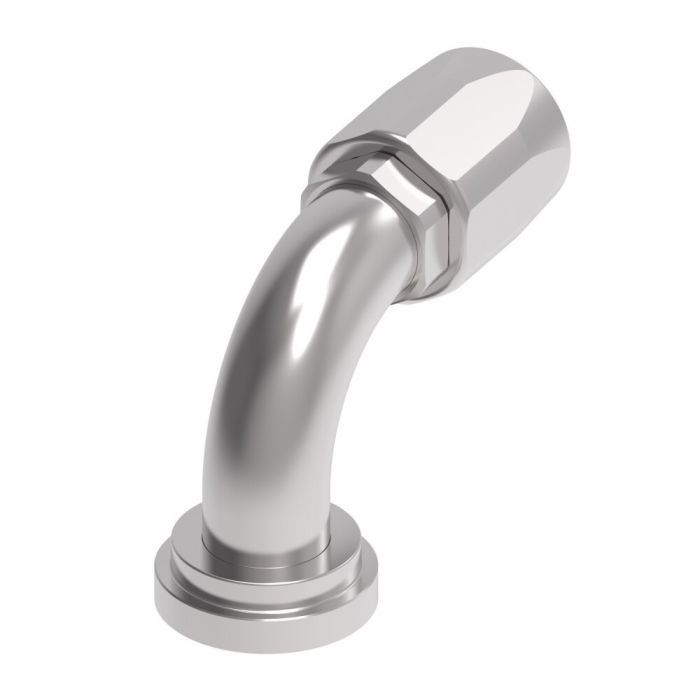

Designed for reliability and versatility, the Eaton Aeroquip fitting is a durable choice for industrial applications. This 90˚ elbow fitting from the 4779 Series is crafted from high-quality carbon steel, ensuring long-lasting performance even in demanding environments. With a flanged end type and suitable for line, hose, or tube connections, this fitting simplifies assembly and boosts production efficiency. It features a hose dash size of -32 and a hex size of 2.5, making it adaptable to various setups.

Ideal for a wide range of applications, this fitting is engineered to cut assembly times significantly, promoting operational efficiency. The robust construction ensures dependability, while its precise design facilitates seamless integration into existing systems. Trust in the Aeroquip brand for quality that meets the rigorous demands of industrial use.

SKU: 4779-40-32S

Supplier Part Number (MPN): 4779-40-32S

Alternate Part Numbers: C1HD96

Specifications

a Dimensions 5.39 in	Compatible Hose ID 2 in	Connection Size 1 2-1/2 in	Connection Size 2 2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 Female Code 61 Split Flanged	Construction Style Reusable	Cut-Off Factor 3.55 in	Dimensions 7.04 in L x 3.31 in W x 4.56 in H	Drop Dimensions 3.31 in	End Size 1 40	Finish Zinc-Plated	Fitting Type 90 deg Elbow	For Use With Model 302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Hoses	Hex Size 2.244 x 2.244 in	Hose Dash Size 32	Inside Diameter 1-3/4 in	Material Steel	Material Construction Carbon Steel	Reusable Socket Hex Size 50 mm	Series 4779 Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Dwight F on Sep 30, 2025, 7:51 AM

fitting says it's reusable, does that mean I can pull it off a hose and put it back on a different one, or is "reusable" just meaning it ain't a crimp style?

Answer by: Customer Support on Oct 1, 2025, 8:33 AM

Reusable in this context means the fitting is mechanically assembled rather than crimped, so yes, it can be disassembled from a hose end and reinstalled. That said, the hose itself takes wear during assembly and removal, so the hose condition is what limits how many times you can realistically do that. The fitting body itself is built to handle multiple assemblies under normal use.
