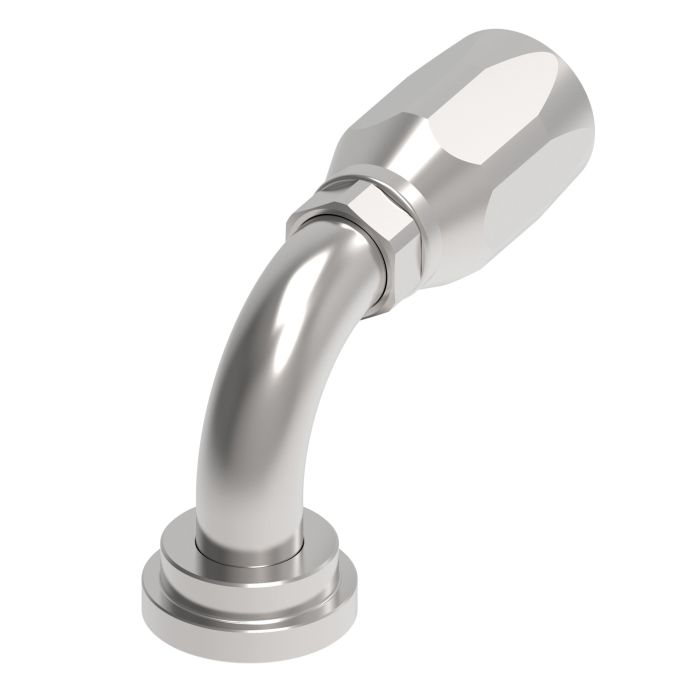

Aeroquip Reusable 16 SPL FLG

Description & Features

This Aeroquip Reusable 16 SPL FLG fitting is suitable for a wide range of applications. This fitting assembly features a flanged end type 1 and a line/hose/tube end type 2.

Manufactured from carbon steel, this Aeroquip fitting offers durability and dependable performance. It helps to reduce assembly times, boosting production. The hex size 2 measures 1.75, and the drop dimension is 2.3800.

SKU: 4790-16S

Supplier Part Number (MPN): 4790-16S

Specifications

a Dimensions 4.84 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 Female Code 61 Split Flanged	Construction Style Reusable	Cut-Off Factor 2.79 in	Dimensions 0.82 in ID	Drop Dimensions 2 in	End Connection Torque 50 to 60 lb-ft	End Size 1 16	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With Model 2766, 27811 and FC195 Hoses	Hex Size 1-3/4 in	Hose Dash Size 16	Inside Diameter 0.82 in	Material Steel	Material Construction Carbon Steel	Series 4790 Series	Thread Sealant Without Thread Sealant	Thread Size 1-3/4 in

Product Questions & Answers (1)

Question by: Freddie F on Oct 25, 2025, 12:43 PM

Will this fitting hold up to some vibration? Putting it on a piece of farm equipment.

Answer by: Customer Support on Oct 27, 2025, 6:09 AM

Yes, the carbon steel construction of this Aeroquip fitting is durable and dependable. It should handle the vibrations common in farm equipment applications.
