AEROQUIP REUSABLE - CODE

Description & Features

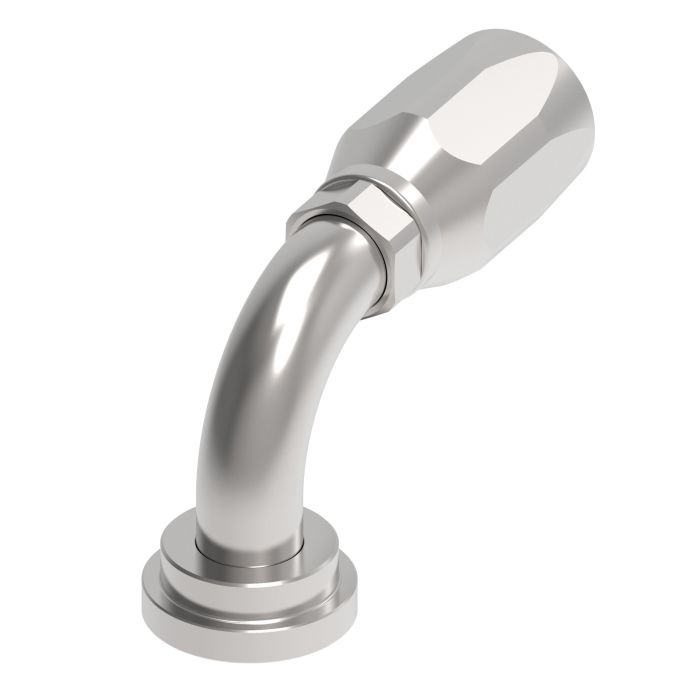

This Aeroquip Reusable fitting assembly features a flanged end type and a line/hose/tube end type. The fitting is suitable for a wide range of applications, offering durable and dependable performance. It helps cut assembly times and boost production efficiency. Constructed from carbon steel, this Aeroquip reusable fitting is designed for reliability.

This 90˚ elbow fitting has a drop dimension of 2.3800 and a hex size of 1.75. It is part of the Aeroquip sub-brand and is designed to meet SAE Code 61 standards. The hose dash size is -16.

SKU: 4790-20-16S

Supplier Part Number (MPN): 4790-20-16S

Specifications

a Dimensions 4.18 in	Compatible Hose ID 1 in	Connection Size 1 1-1/4 in	Connection Size 2 1 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 Female Code 61 Split Flanged	Construction Style Reusable	Cut-Off Factor 2.79 in	Dimensions 0.82 in ID	Drop Dimensions 2 in	End Connection Torque 50 to 60 lb-ft	End Size 1 20	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With Model 2766, 27811 and FC195 Hoses	Hex Size 1-3/4 in	Hose Dash Size 16	Inside Diameter 0.82 in	Material Steel	Material Construction Carbon Steel	Series 4790 Series	Thread Sealant Without Thread Sealant	Thread Size G2

Product Questions & Answers (1)

Question by: Warren M on Jul 29, 2025, 5:00 PM

Reckon this fitting will hold up okay in a hydraulic system for farm equipment, seeing as it's made of carbon steel?

Answer by: Customer Support on Jul 31, 2025, 12:09 PM

Carbon steel construction gives this Aeroquip fitting assembly durability for demanding hydraulic applications. It should definitely hold up in farm equipment hydraulic systems.
