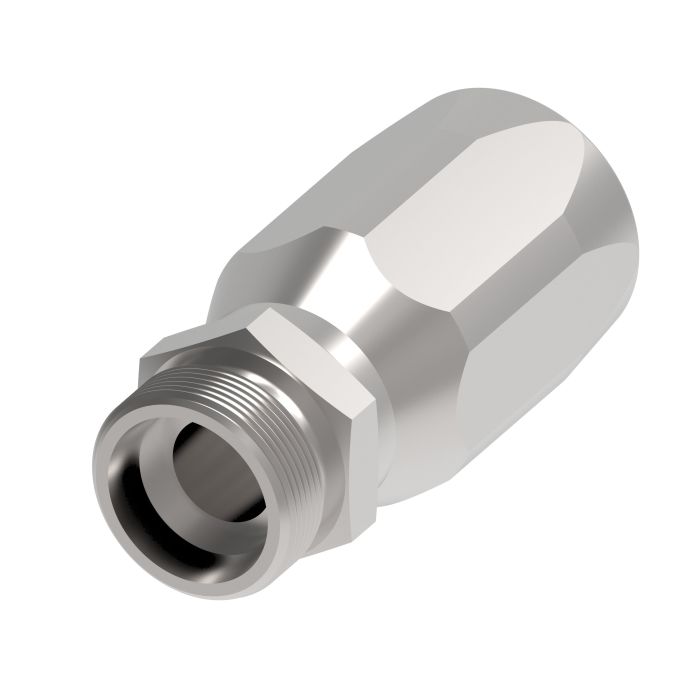

AEROQUIP FITTING

Description & Features

This Aeroquip fitting assembly is suitable for a wide range of applications where durable and dependable connections are required. It offers quick assembly times, boosting production efficiency. Constructed from carbon steel, this fitting ensures reliability in demanding hydraulic environments.

This male SAE fitting is designed for use with -12 hose dash size. It is manufactured by Aeroquip, a trusted name in fluid conveyance solutions. It conforms to SAE 100R5 standards.

SKU: 487-12-12S

Supplier Part Number (MPN): 487-12-12S

Specifications

a Dimensions 2.66 in	Compatible Hose ID 3/4 in	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Hose, Male JIC Swivel	Connection Type 1 Hose	Connection Type 2 Male 37 deg JIC Swivel	Construction Style Reusable	Cut-Off Factor 1.09 in	Dimension Standards SAE J514	Dimensions 2.66 in L x 1.38 in W x 1.38 in H	End Gender 1 Male	End Size 1 12	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With 1503 Series Hoses	Hex Size 1-3/8 in	Hose Dash Size 12	Inside Diameter 0.55 in	Material Steel	Material Construction Carbon Steel	Reusable Socket Hex Size 31.75 mm	Series 487 Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Ross W on Jan 30, 2026, 11:40 AM

What kind of fluid can this handle?

Answer by: Customer Support on Jan 31, 2026, 8:13 PM

This fitting is suitable for a wide range of applications where durable and dependable connections are required. For fluid compatibility details, you can refer to the document linked under the "Documentlink Fluid Compatibility 1" attribute.
