45* Din X Male Bspp Adjustable

Ask A Question

Description & Features

A 45-degree elbow configuration makes this steel fitting well-suited for hydraulic line routing where a directional change is needed without sharp bends. The 45° Din X Male Bspp Adjustable connects an M30 x 2.0 DIN tube end (L22 series) on one side to a 3/4" male BSPP thread (G 3/4-14) on the other, bridging two common hydraulic connection standards in a single compact body.

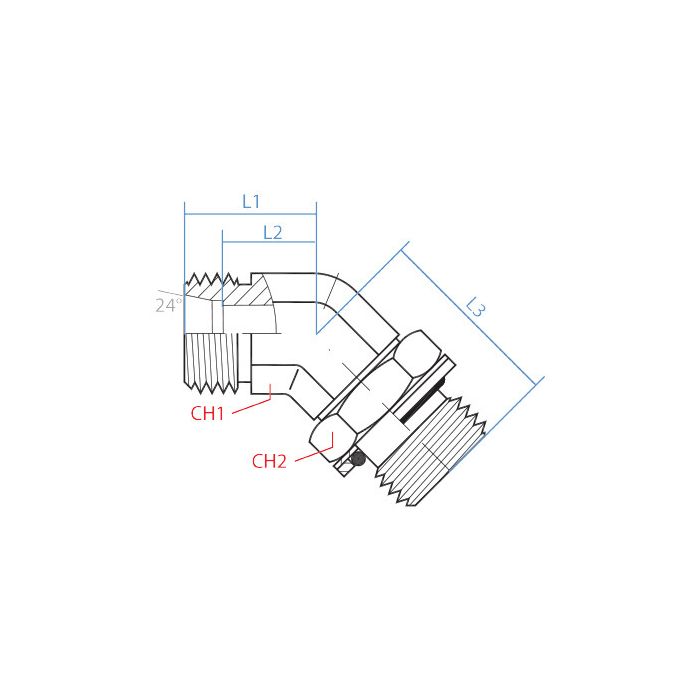

Manufactured by Adaptall in steel, the fitting features an adjustable male BSPP end for positional alignment during installation. Key dimensions include a Ch1 wrench width of 27mm, Ch2 of 36mm, and an overall L3 length of 46mm. This fitting is a practical choice for hydraulic assemblies requiring a reliable DIN-to-BSPP transition at a 45-degree angle.

SKU: 5058L-22-12

Supplier Part Number (MPN): 5058L-22-12

Specifications

Brand
adapt-all
Connection Size 1
L22
Connection Size 2
3/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, DIN 2353
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
5058 Series
Thread Size
M30x2 x 3/4-14

Product Questions & Answers (2)

Question by: Randy H on May 5, 2025, 11:22 AM
got a hose end that’s M30 x 2.0 on the DIN side, will this elbow mate up to that and a 3/4 BSPP port?
Answer by: Customer Support on May 6, 2025, 3:19 PM
For a DIN tube connection, the Side 1 end is M30 x 2.0 in the L22 series, and the other end is a 3/4 inch male BSPP thread listed as G 3/4-14, so it is made to bridge those two connection standards in one fitting.
Question by: Dean R on Jun 13, 2025, 11:09 AM
Got a hydraulic line that needs to make a 45-degree turn and tie into a BSPP port, will this fitting handle that transition in one piece?
Answer by: Customer Support on Jun 14, 2025, 7:43 PM
That's what it's built for. One side is an M30 x 2.0 DIN tube end (L22 series) and the other is a 3/4" male BSPP thread, so you're getting a DIN-to-BSPP crossover right at that 45-degree angle without needing extra adapters in between. The steel body keeps it solid, and the overall length runs 46mm, so it stays pretty compact even with the elbow geometry factored in.
