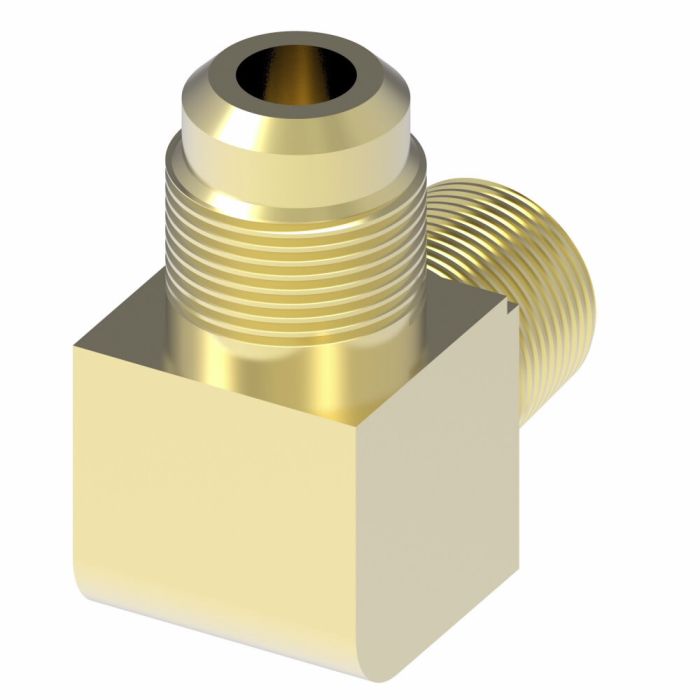

1/8 MSAE X 1/8 MNPT 90 BR.

Description & Features

Constructed from brass, this 90° male elbow adapter connects a 1/8 in. SAE 45° flare fitting to a 1/8 in. NPTF male thread, making it a practical solution for directional routing in hydraulic, pneumatic, power steering, refrigeration, and instrumentation systems. It also supports LP and natural gas service, as well as select flammable liquid applications by special order.

The 1/8 MSAE x 1/8 MNPT 90 BR. is an Aeroquip product built to SAE 010202 standards and features Dura-Kote plating for corrosion resistance. Rated for operating pressures above standard SAE thresholds, it is suited for demanding service environments. A minimum working temperature rating of -65°F extends its usability across a broad range of conditions.

SKU: 49X2

Supplier Part Number (MPN): 49X2

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 1/8 in	Connection Size 2 1/8 in	Connection Type MNPT	Connection Type 1 Male NPTF	Connection Type 2 Male NPTF	Dimension Standards SAE 010202	Drop Dimensions 0.69 in	Finish Nickel-Plated	Fitting Type 90 deg Elbow	For Use With Copper, Brass, Aluminum and Steel Hydraulic Tubings	Material Brass	Material Construction Brass	nmfc 60	Operating Temperature -65 to 250 deg F	Series 49X Series	Thread Size 5/16-24

Similar Products

Model Number	Connection Size 1	Connection Size 2
49X8X8 Brass Male NPT To SAE 90 deg Elbow	1/2 in	1/2 in
49X12 Brass Male NPT To SAE 90 deg Elbow	3/4 in	1/2 in
49X10 Brass Male NPT To SAE 90 deg Elbow	5/8 in	1/2 in
49X12X12 Brass Male NPT To SAE 90 deg Elbow	3/4 in	3/4 in
49X10X6 Brass Male NPT To SAE 90 deg Elbow	5/8 in	3/8 in
49X5 Brass Male NPT To SAE 90 deg Elbow	5/16 in	1/8 in
49X6X2 Brass Male NPT To SAE 90 deg Elbow	3/8 in	1/8 in
49X8 Brass Male NPT To SAE 90 deg Elbow	1/2 in	3/8 in
49X5X4 Brass Male NPT To SAE 90 deg Elbow	5/16 in	1/4 in
49X4 Brass Male NPT To SAE 90 deg Elbow	1/4 in	1/8 in
49X6X6 Brass Male NPT To SAE 90 deg Elbow	3/8 in	3/8 in
49X8X4 Brass Male NPT To SAE 90 deg Elbow	1/4 in	1/2 in
49X6X8 Brass Male NPT To SAE 90 deg Elbow	3/8 in	1/2 in
49X6 Brass Male NPT To SAE 90 deg Elbow	3/8 in	1/4 in
49X4X4 Brass Male NPT To SAE 90 deg Elbow	1/4 in	1/4 in
49X4X6 Brass Male NPT To SAE 90 deg Elbow	1/4 in	3/8 in
49X3	3/16 in	1/8 in
49X4Z	1/8 in	1/4 in
