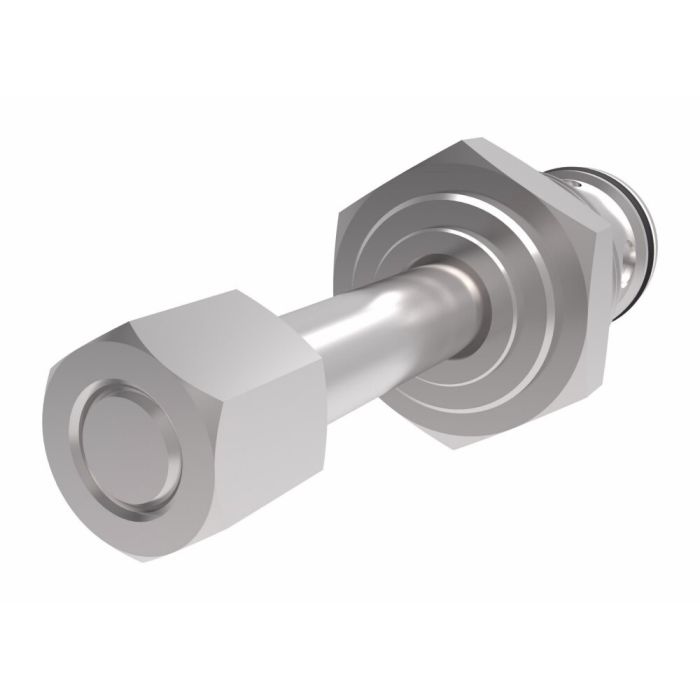

4CKD90 Series Single Pilot Operated Cartridge Check Valve, 25:1 Pilot Ratio, Nitrile Seals

Ask A Question

Description & Features

This Eaton Char-Lynn 4CKD90 Series Single Pilot Operated Cartridge Check Valve offers reliable load holding for hydraulic circuits. Designed with nitrile seals, it provides free flow in one direction and blocks reverse flow until pilot pressure is applied.

This cartridge valve is effective in clamping circuits, intensifiers, and applications with high load-induced pressures. The decompression feature allows controlled pressure decay, reducing hydraulic noise and instability. It has a 25:1 pilot ratio decompression stage, and a 3:1 main stage pilot ratio. The 4CKD90 Series Single Pilot Operated Cartridge Check Valve is rated to 5000 PSI on ports 2 & 3, and 6000 PSI on cylinder port 1, with a 24 GPM flow rating.

SKU: 401AA00006A

Supplier Part Number (MPN): 401AA00006ASP

Alternate Part Numbers: C1LX24

Specifications

Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
350 bar (5000 psi) & 227 L/min (60 USgpm)|High operational efficiency|Low spring settings
Pilot Ratio
25:1
Alternate Part Numbers
Alternate Part Number C1LX24
Supplier Part Number
401AA00006A
Product Weight
0.54 lbs

Related Documents

Similar Products

Model Number Part Number Pilot Ratio Seal Material Price Action
4CKD90 Series Single Pilot Operated Cartridge Check Valve, 25:1 Pilot Ratio, Nitrile Seals

4CKD901S3 4CKD90 Series Cartridge Valve

401AA00006A

25:1

Nitrile

Product Questions & Answers (3)

Question by: Hank F on Sep 4, 2025, 6:35 PM
what's the pilot ratio on this valve, and does that 25:1 figure apply to both stages or just the decompression side?
Answer by: Customer Support on Sep 6, 2025, 9:29 AM
The 25:1 ratio applies specifically to the decompression stage. The main stage runs a 3:1 pilot ratio. That two-stage setup is what lets locked-in pressure bleed down in a controlled way before the main stage opens, which cuts down on the pressure spikes and noise you'd otherwise get from a sudden release.
Question by: Dustin H on Jul 24, 2025, 11:56 AM
got a cylinder that creeps when the control valve’s in neutral. is this the kind of lock valve that’ll hold it put till i send pilot pressure?
Answer by: Customer Support on Jul 25, 2025, 5:54 PM
Built for load holding, a pilot operated check like the 4CKD90 lets oil flow freely toward the cylinder, then blocks reverse flow so the cylinder stays locked when the control valve is centered. When you apply pilot pressure, it unlocks so the load can move again, which is why these are commonly used to prevent movement when the pressure source is inactive.
Question by: Brenda K on Dec 26, 2025, 2:19 PM
What size housing do I need for this cartridge valve?
Answer by: Customer Support on Dec 28, 2025, 7:57 AM
This 4CKD90 cartridge valve fits a Cavity Size A12336 housing. You'll need to order that separately.
