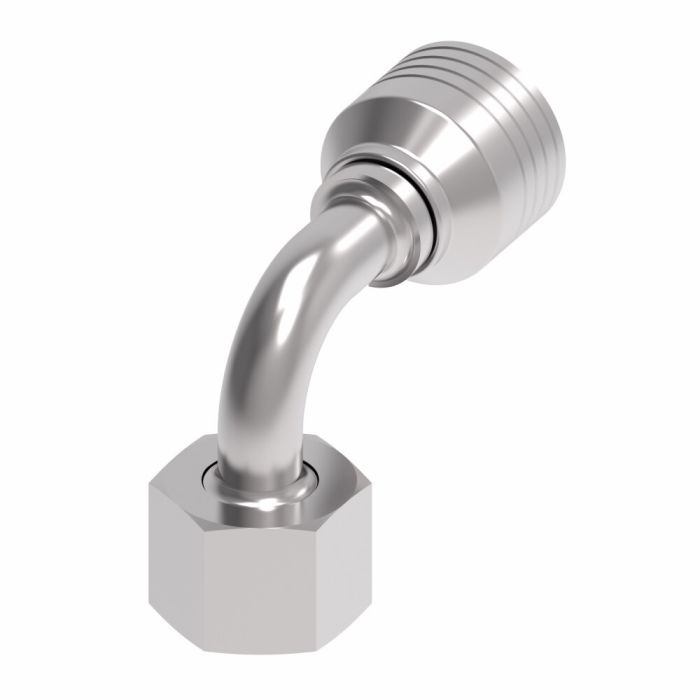

Designed for demanding hydraulic hose assembly applications, this carbon steel fitting features a Female Swivel DIN 24 Seat configuration with a 90-degree elbow geometry, accommodating a -6 hose dash size. The Metric end connection and line/hose/tube end type make it well-suited for use in mobile and industrial hydraulic systems where reliable swivel articulation and secure sealing are required.
The Fitting (Perm) 4S is manufactured under the Aeroquip brand and meets SAE J1176 certification. Dura-Kote plating provides strong corrosion resistance, while the system-engineered design is intended to extend hose assembly service life and support consistent uptime in service. With a package weight of 1.32 lb and a drop dimension of 1.65, this fitting is a direct-replacement assembly-type component stocked for hydraulic maintenance and build applications.
SKU: 4S10DSB6
Supplier Part Number (MPN): 4S10DSB6
|
Alternate Part Numbers
MINO-00925X11004
|
Certifications
SAE J1176
|
Drop Dimension
1.65
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Type 1
Metric
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-6
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
1.16
|
Sub Brand
None
|
Supplier Part Number
4S10DSB6
|
Product Weight
0.32 lbs
|
