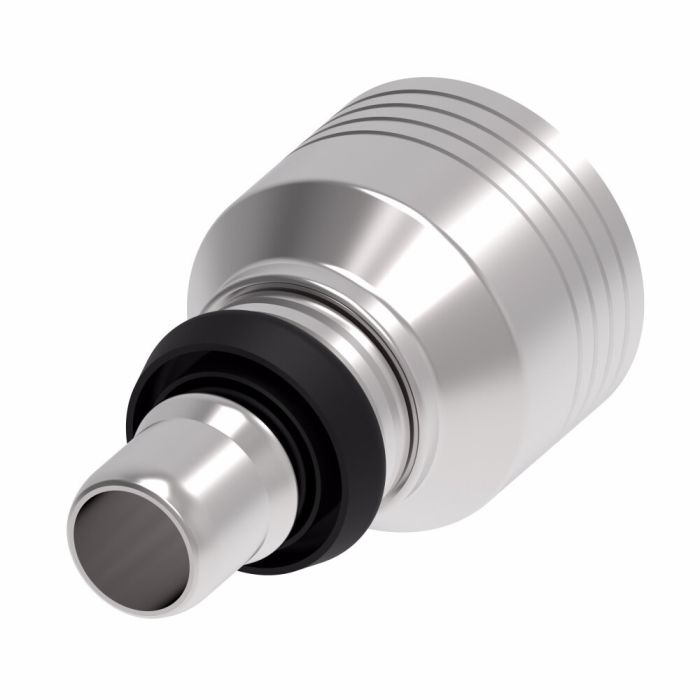

Fitting Perm 4S

Ask A Question

Description & Features

This Perm 4S fitting is a male STC Type II crimp hose fitting designed for hydraulic applications. Constructed from carbon steel with Dura-Kote plating, it offers superior corrosion resistance and extended service life.

Engineered for maximum uptime, this fitting is part of a system designed to extend hose assembly life. It conforms to SAE J1176 standards. The hose dash size is -10.

SKU: 4S10MC10

Supplier Part Number (MPN): 4S10MC10

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.72 in
Compatible Hose ID
5/8 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Hose, Male STC
Connection Type 1
Hose
Connection Type 2
Male STC
Construction Style
Crimp
Cut-Off Factor
1.559 in
Dimension Standards
SAE J1176
Dimensions
0.5 in Dia x 2.72 in L
End Gender 1
Male
End Size 1
10
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
EC525, EC600, EC810, FC254, FC273B, FC500, FC636, FC736, GH493, GH506 and H430 Series Hoses
Hose Dash Size
10
Inside Diameter
1/2 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Series
4S Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Ray W on Feb 15, 2026, 6:00 PM
Will this fitting hold up to high pressure in a hydraulic system for farm equipment?
Answer by: Customer Support on Feb 17, 2026, 6:08 AM
Dura-Kote plating on this fitting provides superior corrosion resistance, which should help it hold up well in demanding environments like farm work. It's also designed to deliver maximum uptime.
