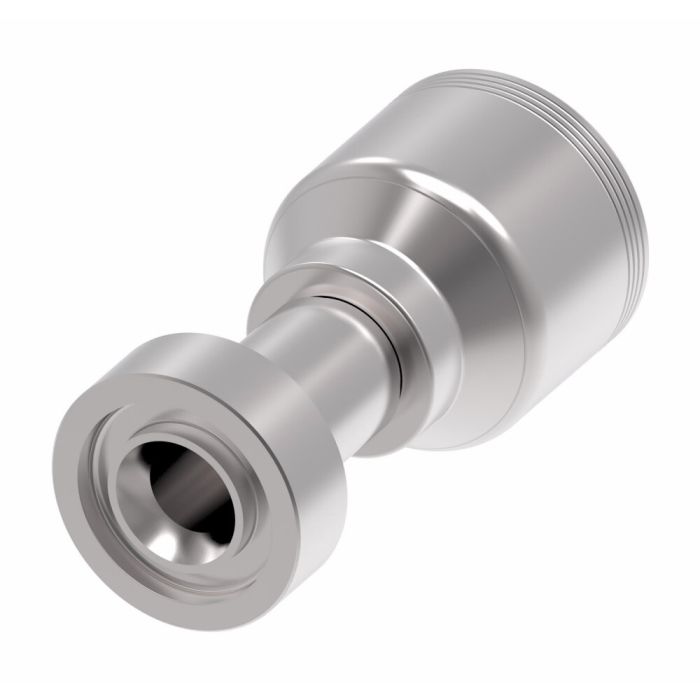

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Description & Features

Engineered to extend hose assembly life, the Danfoss / Eaton 4S Series Crimp Hose Fittings CAT Flange is designed for enhanced performance. This fitting combines Dura-Kote plating for superior corrosion resistance with an innovative design, ensuring maximum uptime.

With certifications under SAE J1176, this component meets rigorous industry standards. The flanged end type and hose dash size of -12 make it suitable for various industrial applications. Constructed from durable carbon steel, it offers reliable performance in demanding environments.

The product is not calibrated, color-coded, ratcheting, or machine mountable. It is also free from components such as a check valve, remote control, and switch connector.

MPN: 4S12CT12

Supplier Part Number: 4S12CT12

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.79 in	Compatible Hose ID 3/4 in	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 Caterpillar Flanged	Construction Style Crimp	Cut-Off Factor 2.36 in	Dimension Standards SAE J1176	Dimensions 3.8 in L x 1.84 in W x 1.84 in H	End Size 1 12	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 12	Inside Diameter 0.56 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (3)

Question by: Norm R on Jul 4, 2025, 9:08 PM

What kind of plating does this fitting have? I need something that can hold up.

Answer by: Customer Support on Jul 6, 2025, 6:25 AM

Dura-Kote plating gives this fitting some serious corrosion resistance, which is what you want for long-term reliability.

Question by: Howard C on Jun 20, 2025, 5:10 PM

fitting says 4-wire spiral, does that mean it's only gonna work with spiral hose or can it go on other types too?

Answer by: Customer Support on Jun 22, 2025, 2:35 PM

Four-wire spiral fittings are matched to four-wire spiral hose constructions. The dash size here is -12, so you'd pair it with a -12 four-wire spiral hose. Trying to crimp it onto a different hose type or a different dash size isn't something this fitting is built for, and you'd risk a bad assembly that won't hold up under pressure.

Question by: Hugh F on Dec 5, 2025, 3:22 PM

What's the Dura-Kote plating do for this fitting?

Answer by: Customer Support on Dec 7, 2025, 10:32 AM

Dura-Kote plating gives this fitting better rust protection, which helps it last longer.
