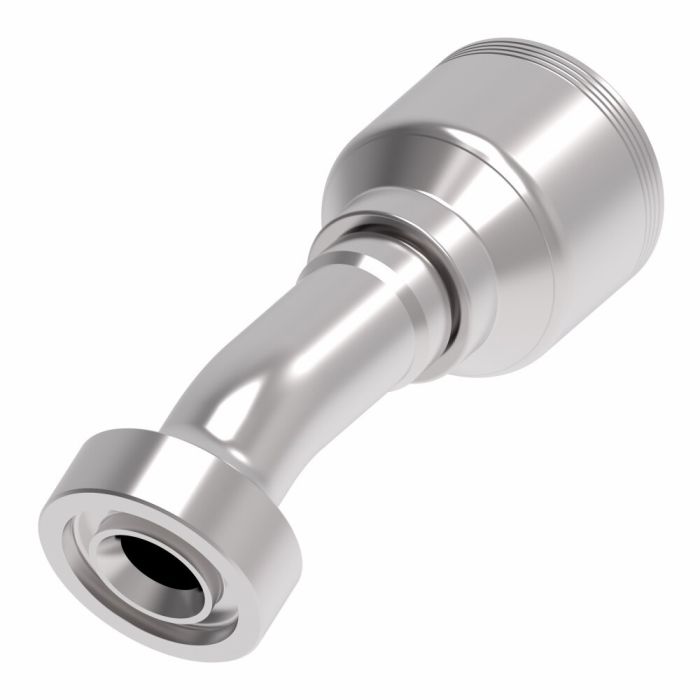

Cat Flange 22.5°

Description & Features

Eaton Aeroquip's carbon steel Cat Flange 22.5° fitting assembly features Dura-Kote plating for enhanced corrosion resistance and an innovative design to maximize performance and extend hose assembly life. Engineered for demanding applications, this fitting is manufactured to SAE J1176 standards.

The flanged end connection ensures a secure, leak-free connection. It is designed for use with -12 hose dash size.

SKU: 4S12CTD12

Supplier Part Number (MPN): 4S12CTD12

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 4.97 in	Compatible Hose ID 3/4 in	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 Caterpillar Flanged	Construction Style Crimp	Cut-Off Factor 3.55 in	Dimension Standards SAE J1176	Dimensions 5.5 in L x 1.84 in W x 2.26 in H	Drop Dimensions 0.759 in	End Size 1 12	Finish Zinc-Plated	Fitting Type 22-1/2 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 12	Inside Diameter 0.56 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Hank S on Jul 1, 2025, 2:31 PM

does this fitting work with 4-wire spiral hose on a -12 dash size setup?

Answer by: Customer Support on Jul 3, 2025, 9:10 AM

Carbon steel construction and a -12 hose dash size make this a solid match for 4-wire spiral hose assemblies in that configuration. The Dura-Kote plating adds corrosion resistance, so it holds up better than plain steel in environments where moisture or fluid exposure is part of the job.
