Cat Flange 60°

Description & Features

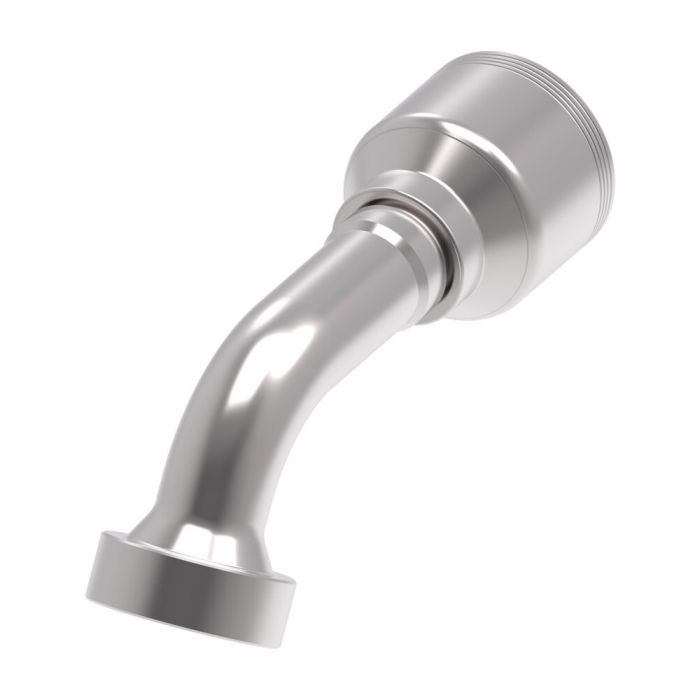

This Eaton Aeroquip fitting assembly features a Cat Flange 60° end, designed for secure and reliable connections in demanding hydraulic applications. Constructed from carbon steel with Dura-Kote plating, this fitting offers superior corrosion resistance and extended service life. Its innovative design ensures optimal performance and maximum uptime.

Engineered to meet SAE J1176 standards, this flanged fitting is suitable for use with -12 hose dash size. The end type 1 is flanged, while end type 2 connects to a line, hose, or tube.

SKU: 4S12CTG12

Supplier Part Number (MPN): 4S12CTG12

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 5.38 in	Compatible Hose ID 3/4 in	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 Caterpillar Flanged	Construction Style Crimp	Cut-Off Factor 3.96 in	Dimension Standards SAE J1176	Dimensions 6.2 in L x 1.84 in W x 3.09 in H	Drop Dimensions 1.67 in	End Size 1 12	Finish Zinc-Plated	Fitting Type 60 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 12	Inside Diameter 0.56 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Shawn B on Nov 28, 2025, 7:26 AM

does the corrosion resistance on these hold up when they're running outdoors in rough conditions year round?

Answer by: Customer Support on Nov 29, 2025, 4:25 PM

Carbon steel with Dura-Kote plating is what you're getting here, and that plating is specifically built to push corrosion resistance beyond what standard zinc or plain steel finishes offer. For outdoor equipment that stays exposed to weather, mud, and moisture through the seasons, that extra layer of protection makes a real difference in how long the fitting holds up before showing any surface degradation.
