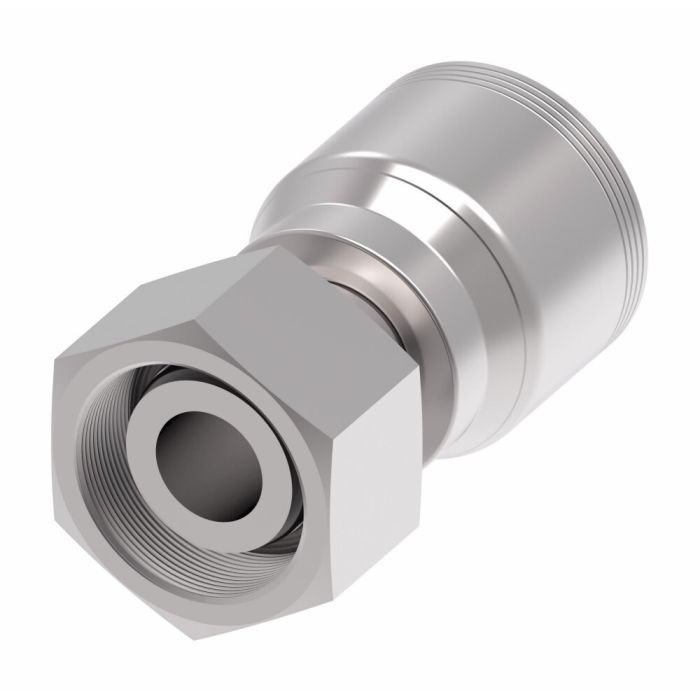

main product photo

Fitting Perm 4-SPRL DKOL

Ask A Question

Description & Features

The fitting perm 4-SPRL DKOL is manufactured by Danfoss Power Solutions to meet SAE J1176 certifications. It features a female end in metric and a line/hose/tube connection type. Crafted from durable carbon steel and measuring 1.34 inches in width this fitting is engineered to extend hose assembly life and ensure maximum uptime.

Equipped with Dura-Kote plating this component offers superior resistance to corrosion making it suitable for demanding technical environments. The innovative design guarantees reliable performance and longevity and it does not require calibration a mandrel or color coding.

Supplier Part Number: 4S12DS8

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.46 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
3/4 in
Connection Type
Female DKOS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female DKOS DIN 24 deg Seat Swivel
Construction Style
Crimp
Cut-Off Factor
1.29 in
Dimension Standards
SAE J1176
Dimensions
2.48 in L x 1.34 in W x 1.36 in H
End Gender 1
Female
End Size 1
12
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hex Size
1.188 in
Hose Dash Size
08
Inside Diameter
0.38 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
NBR
Segment Code
A
Series
4S Series
Thread Sealant
Without Thread Sealant
Thread Size
M24x1.5

Product Questions & Answers (1)

Question by: Duane B on Aug 10, 2025, 9:02 PM
So, this fitting is made of carbon steel, right? Just want to make sure it can hold up.
Answer by: Customer Support on Aug 12, 2025, 6:26 AM
That's correct. Carbon steel makes up the body of this fitting, which gives it good strength for demanding applications.
